Mode Actuator Replacement - Lower



Mode Actuator Replacement - Lower

Removal Procedure

1. Remove the I/P carrier.

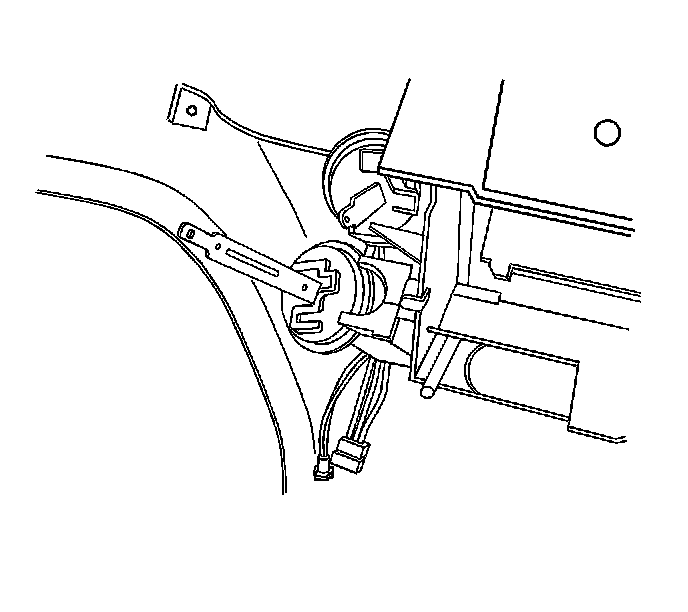

2. Release the tabs from the lower mode actuator.





3. Remove the lower mode actuator.

Installation Procedure





1. Install the lower mode actuator.
2. Press lower mode actuator on until you hear tabs engage.
3. Install the I/P carrier.
