Auxiliary Mode Actuator Replacement

Auxiliary Mode Actuator Replacement

Removal Procedure

1. Remove the heater assembly.

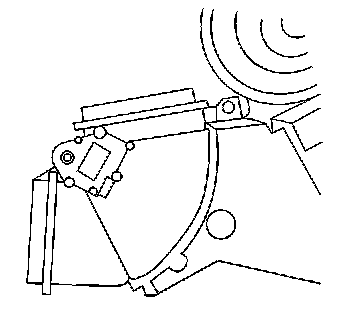

2. Remove the retaining screws from the auxiliary mode actuator.





3. Remove the auxiliary mode actuator.

Installation Procedure





1. Install the auxiliary mode actuator.

Notice: Refer to Fastener Notice.

2. Install the retaining screws to the auxiliary mode actuator.

Tighten the screws to 1.9 N.m (17 lb in).

3. Install the heater assembly.
