Parking Brake Pedal: Service and Repair

Park Brake Pedal Assembly Replacement

Removal Procedure

1. Complete the pedal pin up procedure. Refer to Parking Brake Cable Adjuster Disabling.




2. Remove the release handle.
3. Remove the left side kick panel.
4. Remove the left floor air outlet duct.

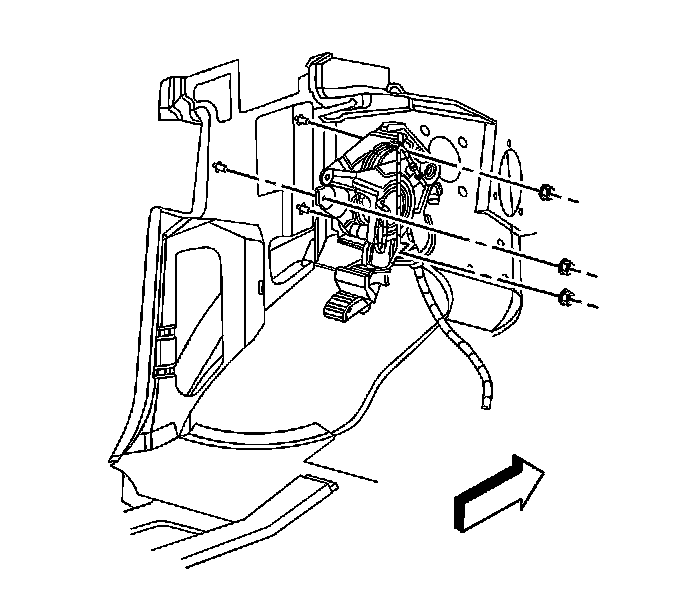

5. Remove the pedal retaining nuts.
6. Remove the pedal from the vehicle.
7. Remove the front brake cable from the pedal.

Installation Procedure

1. Connect the front brake cable to the pedal.




2. Install the pedal to the vehicle.

Notice: Refer to Fastener Notice.

3. Install the pedal retaining nuts.

Tighten the pedal retaining nuts to 25 N.m (18 lb ft).

4. Install the left floor air outlet duct.
5. Install the left side kick panel.
6. Install the release handle.
7. Enable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Enabling.
8. Verify that the vehicle will hold position with the brake pedal depressed.
9. If additional adjustments need to be made, refer to Park Brake Adjustment.
