Radio Front Side Door Speaker Replacement

Radio Front Side Door Speaker Replacement

Removal Procedure

1. Remove the front door trim panel.






Caution: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.

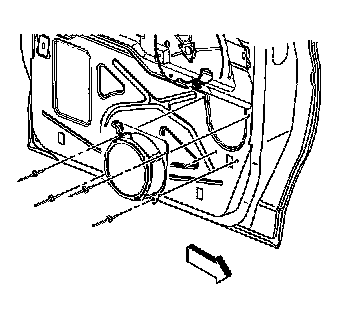

2. Remove the rivets retaining the speaker/housing to the door using appropriate drill and drill bit.
3. Remove the speaker/housing from the door.
4. Disconnect the electrical connector from the speaker housing.

Installation Procedure

1. Connect the electrical connector to the speaker housing.





2. Install the speaker/housing to the door.
3. Install the rivets retaining the speaker housing to the door.
4. Install the front door trim panel.
