Antenna Mast: Service and Repair

Fixed Antenna Mast Replacement

Removal Procedure






Notice: Use tape on the tool surface so that you do not damage the paint on the antenna mast.

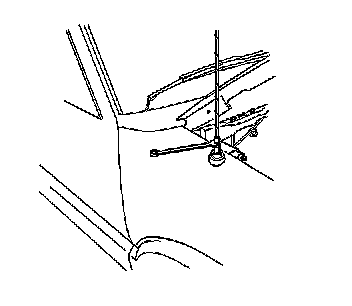

1. Unscrew the antenna mast.





2. Remove the antenna mast from the antenna base.

Installation Procedure






Important: Use tape on the tool surface in order to protect the paint on the antenna mast from damage.

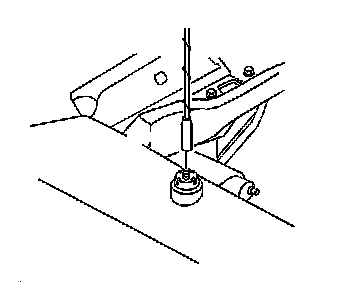

1. Install the antenna mast to the antenna base.

Notice: Refer to Fastener Notice.





2. Screw the antenna mast to the antenna base.

Tighten the antenna mast to 5 N.m (44 lb in).
