Home
>>
Chevy Truck
>>
2007
>>
Express 1500 RWD V6-4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Coil
Ignition Coil

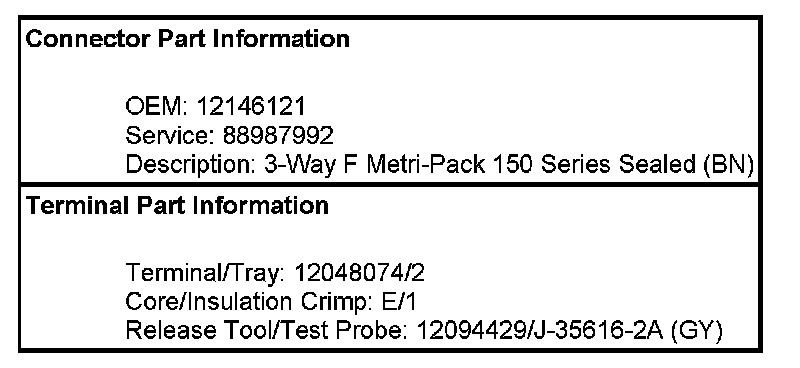

Engine Controls Connector End Views

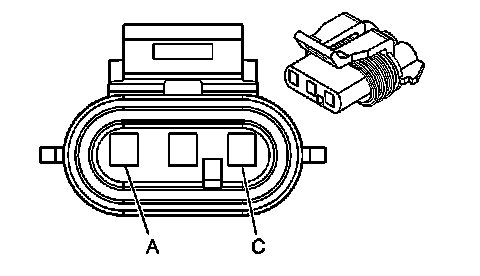

Ignition Coil
