Engine Harness - Rear of the Engine
Engine Harness - Rear of the Engine

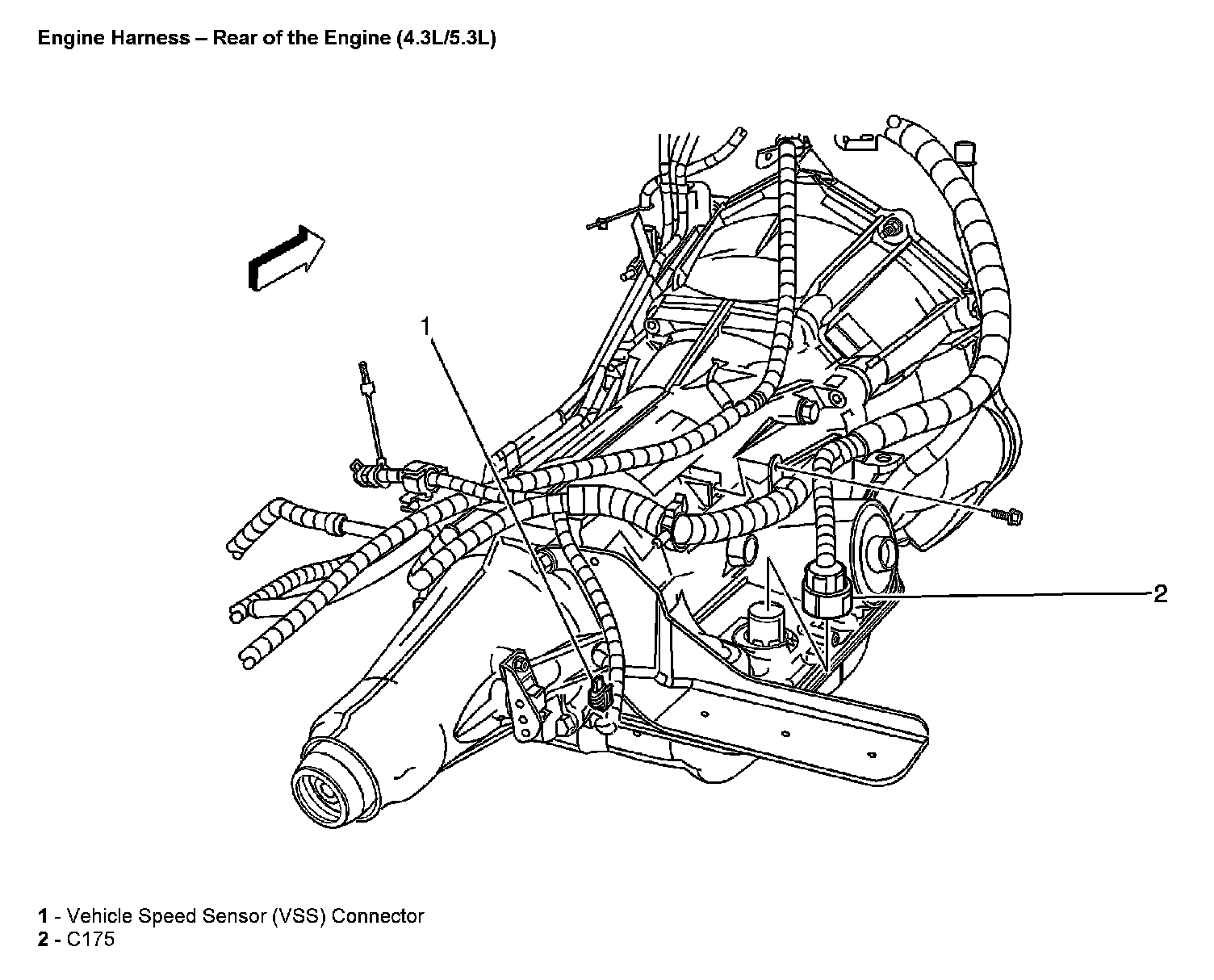

Engine Harness - Rear Of The Engine (4.3L/5.3L):
