Home >> Chevy Truck >> 2007 >> Express 1500 AWD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cigarette Lighter >> Cigar Lighter (DT4)

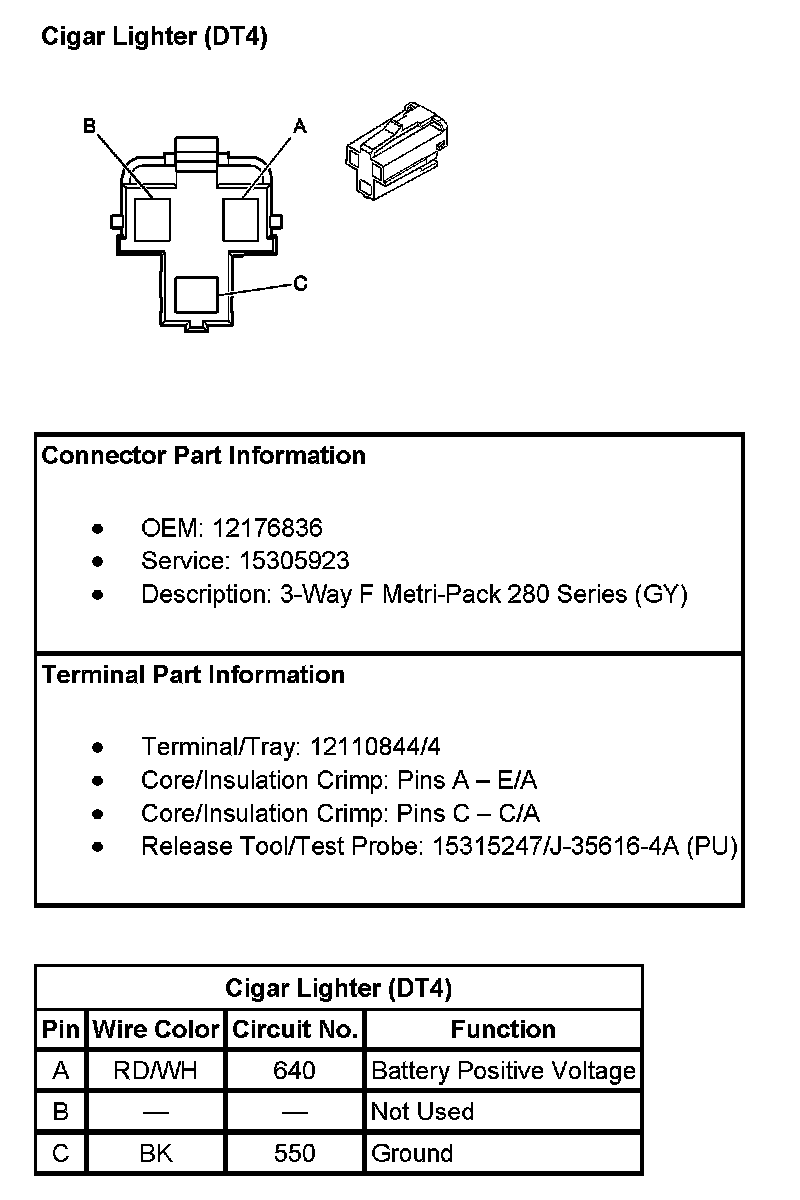

Cigar Lighter (DT4)

Cigar Lighter (With RPO Code DT4):
