Home
>>
Chevy Truck
>>
2007
>>
Colorado 4WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
Seat Temperature Element

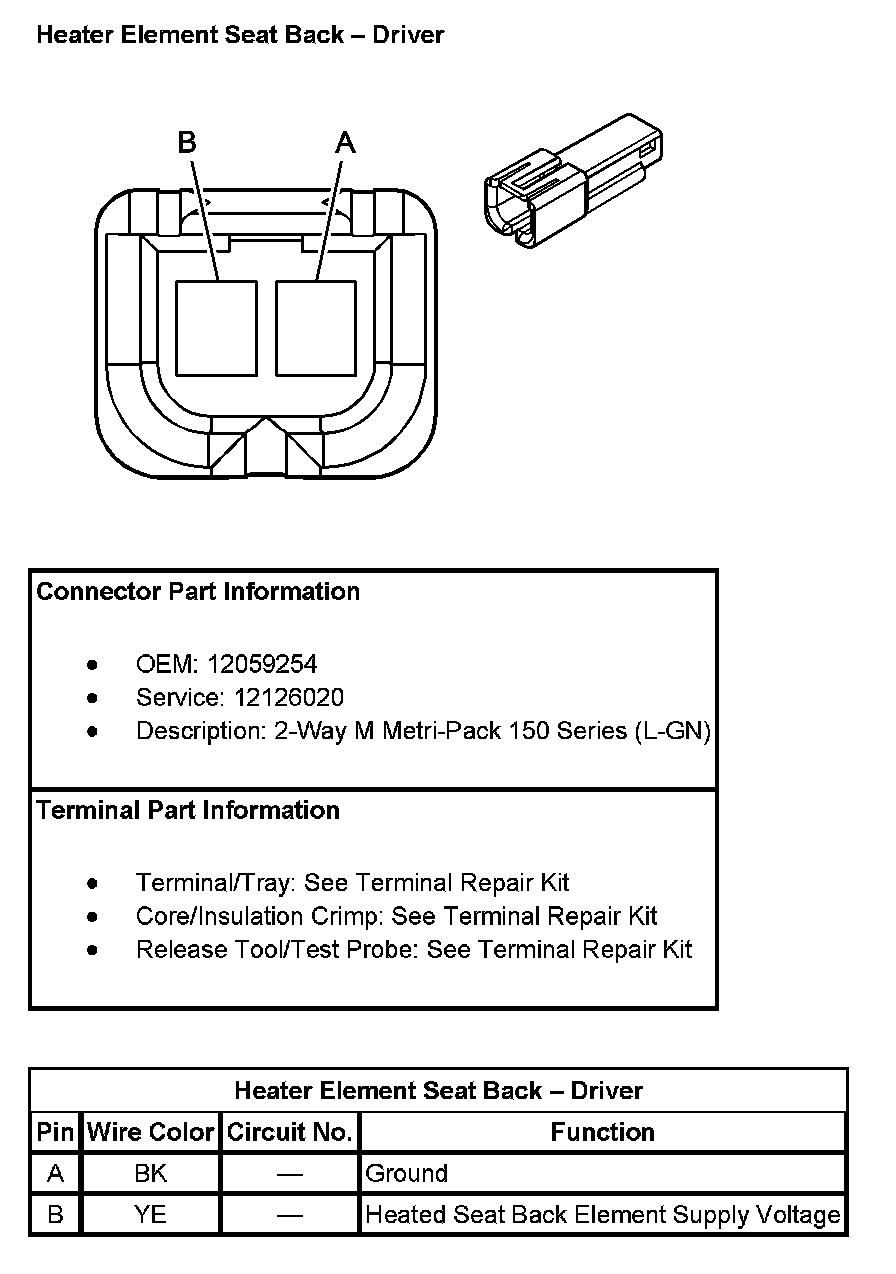

Heater Element Seat Back - Driver:

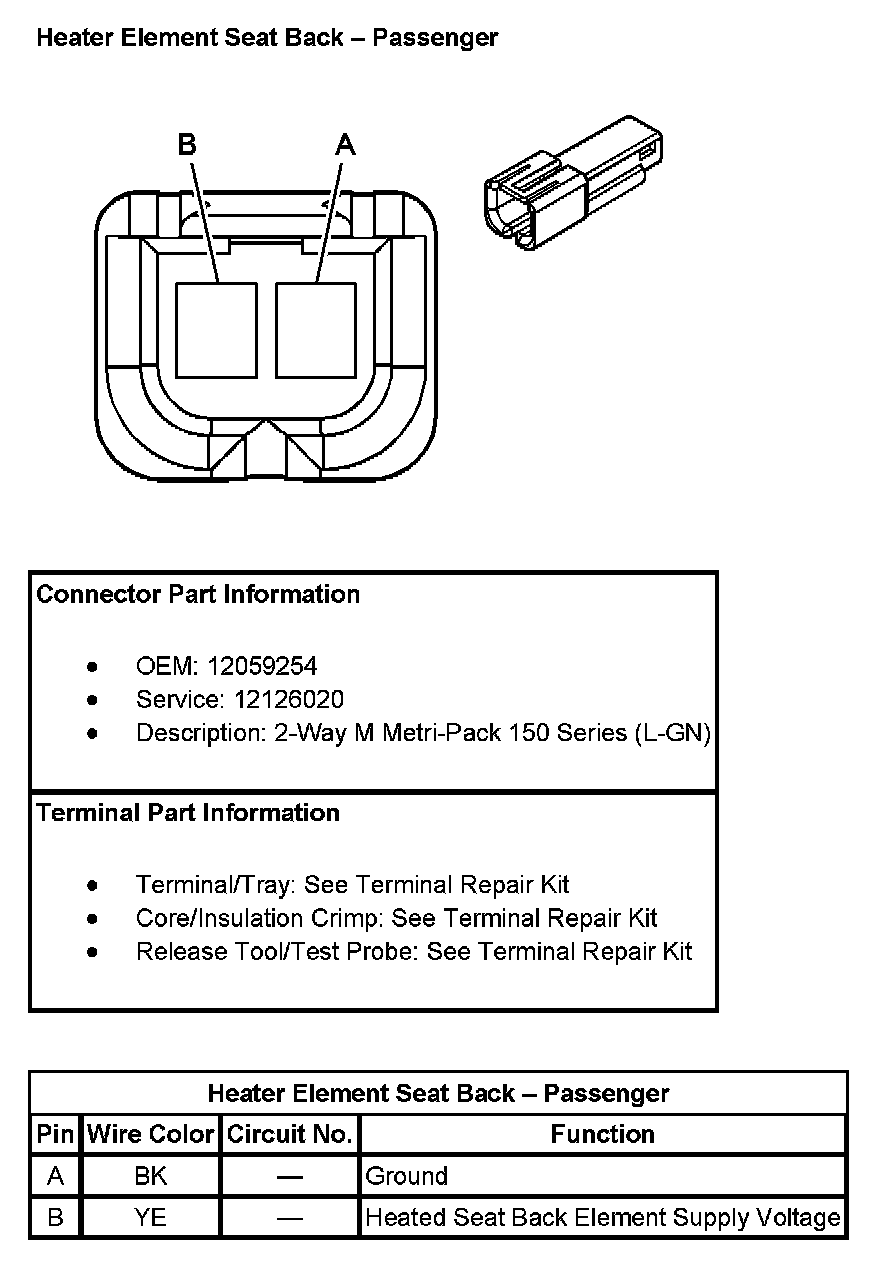

Heater Element Seat Back - Passenger:
