Vacuum Brake Booster: Service and Repair

Vacuum Brake Booster Replacement

Removal Procedure

Caution: Refer to Brake Fluid Irritant Caution.

Notice: Refer to Brake Fluid Effects on Paint and Electrical Components Notice.




1. Remove the master cylinder assembly.
2. Remove the knee bolster trim panel.
3. Remove the retaining clip for the pushrod for the brake booster.




4. Remove the clevis pin.
5. Remove the pushrod from the brake pedal.

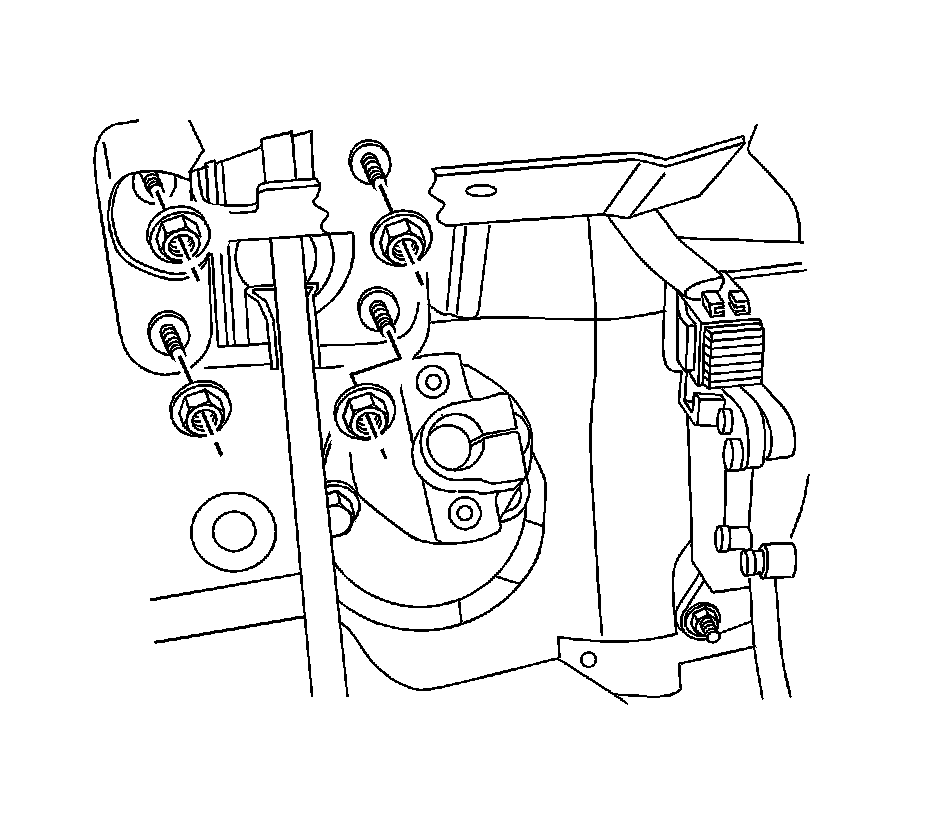

6. Remove the mounting nuts for the brake booster.

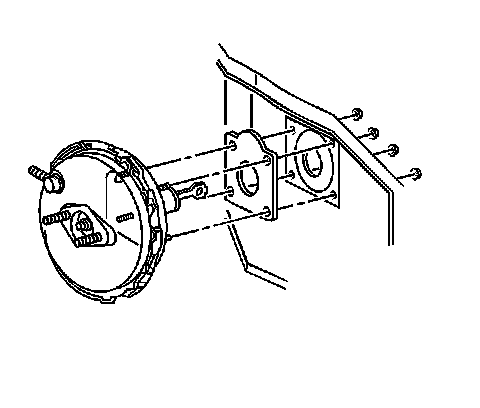

7. Remove the brake booster from the vehicle.

Installation Procedure




1. Install the brake booster in the bulkhead.





Notice: Refer to Fastener Notice.

2. Install the mounting nuts for the brake booster.

Tighten the brake booster mounting nuts to 20 N.m (15 lb ft).

3. Install the pushrod on the brake pedal.




4. Install the clevis pin.




5. Install the retaining clip.
6. Adjust the stop lamp switch.
7. Adjust the cruise control release switch.
8. Install the knee bolster trim panel.
9. Install the master cylinder assembly.
