Parking Brake Pedal: Service and Repair

Park Brake Pedal Assembly Replacement

Removal Procedure




1. Release the park brake.
2. Raise the vehicle. Refer to Vehicle Lifting.
3. Remove the wheel house inner liner.
4. Remove the park brake cable adjusting nut.




5. Remove the front park brake cable from the equalizer.




6. Remove the retaining bolt for the front park brake cable.
7. Remove the knee bolster panel.
8. Remove the clutch pedal assembly.




9. Remove the electrical connector from the brake switch.




10. Remove the park brake cable pedal mounting bolts.
11. Remove the front park brake cable weather seal.
12. Remove the park brake pedal assembly from the vehicle.
13. Remove the front park brake pedal and cable assembly from the vehicle noting routing for installation.

Installation Procedure




1. Install the park brake pedal and cable assembly as previously routed.

Notice: Refer to Fastener Notice.

2. Install the mounting bolts for the park brake pedal assembly.

Tighten the park brake pedal mounting bolts to 20 N.m (15 lb ft).

3. Install the front park brake cable weather seal.
4. Install the clutch pedal assembly.

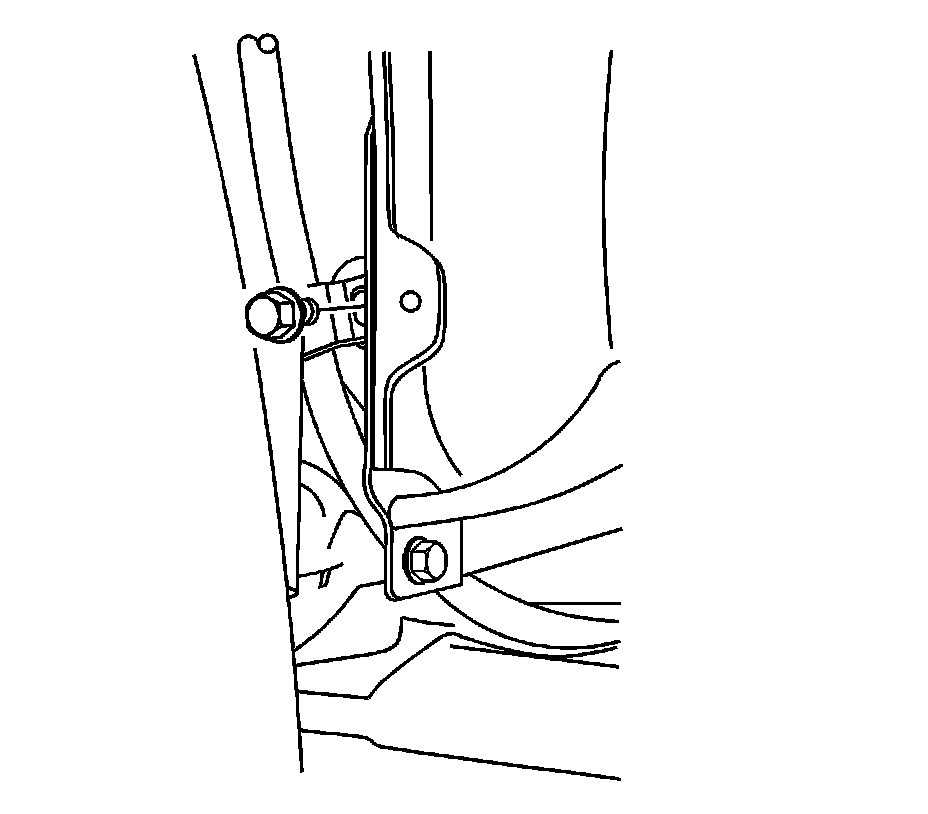

5. Install the retaining bolt for the front park brake cable at the wheel well.

Tighten the front park brake retaining bolt to 20 N.m (15 lb ft).




6. Install the front park brake cable to the equalizer.




7. Install the park brake cable adjusting nut.
8. Install the wheel house liner.
9. Install the knee bolster panel.
10. Lower the vehicle.
