Chevy Truck
>>
2006
>>
TrailBlazer 4WD V8-6.0L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch
Brake Fluid Level Switch

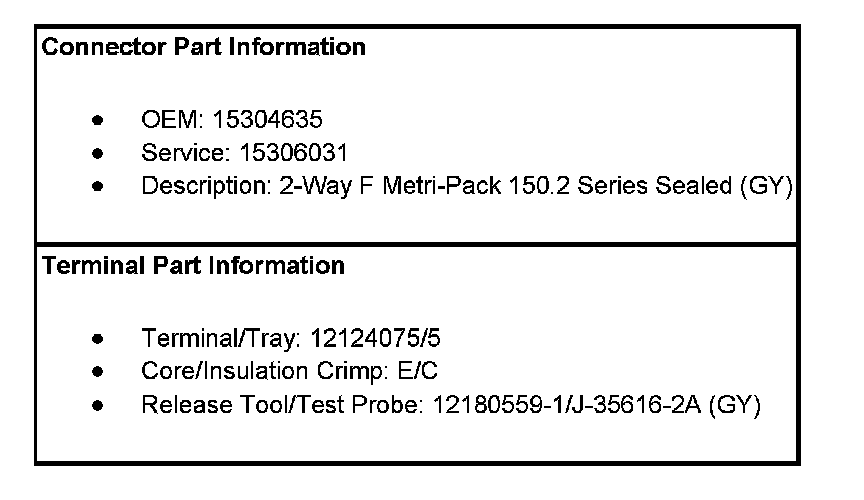

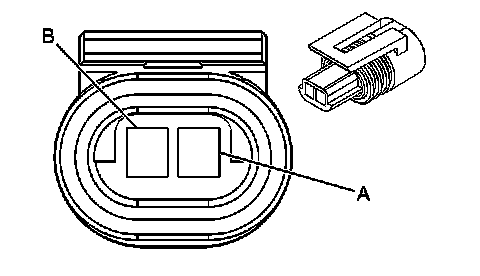

Brake Fluid Level Switch:

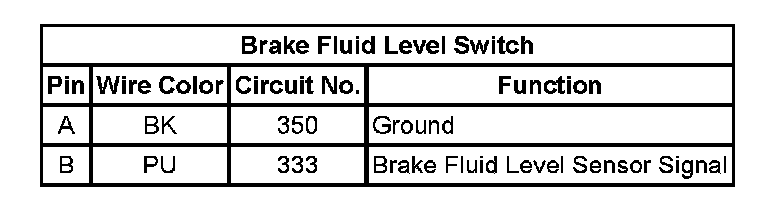

Brake Fluid Level Switch:
