Amplifier, Sound System
>>
Audio Amplifier C1
Audio Amplifier C1

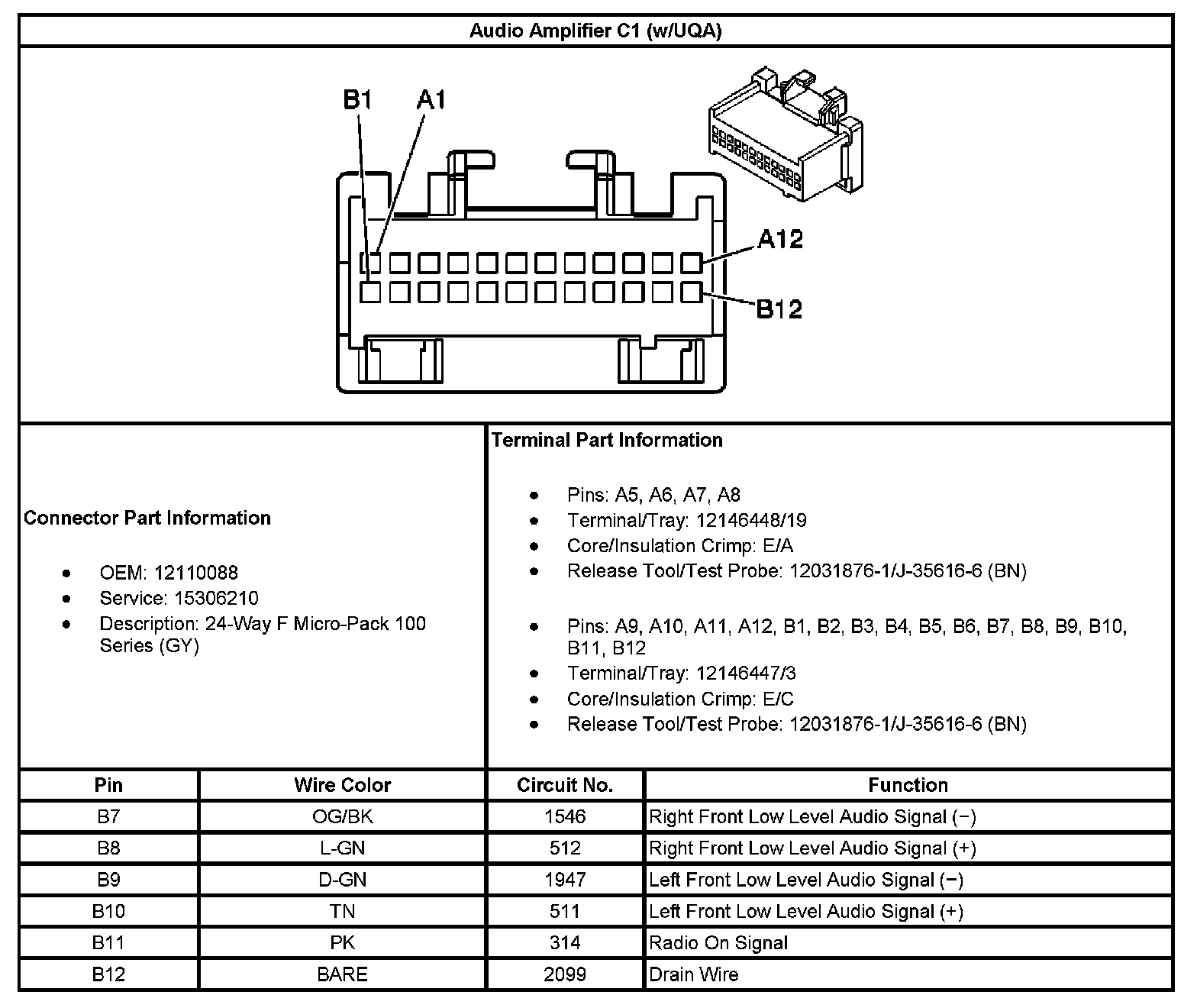

Audio Amplifier C1 (With RPO Code UQA) (Part 1):

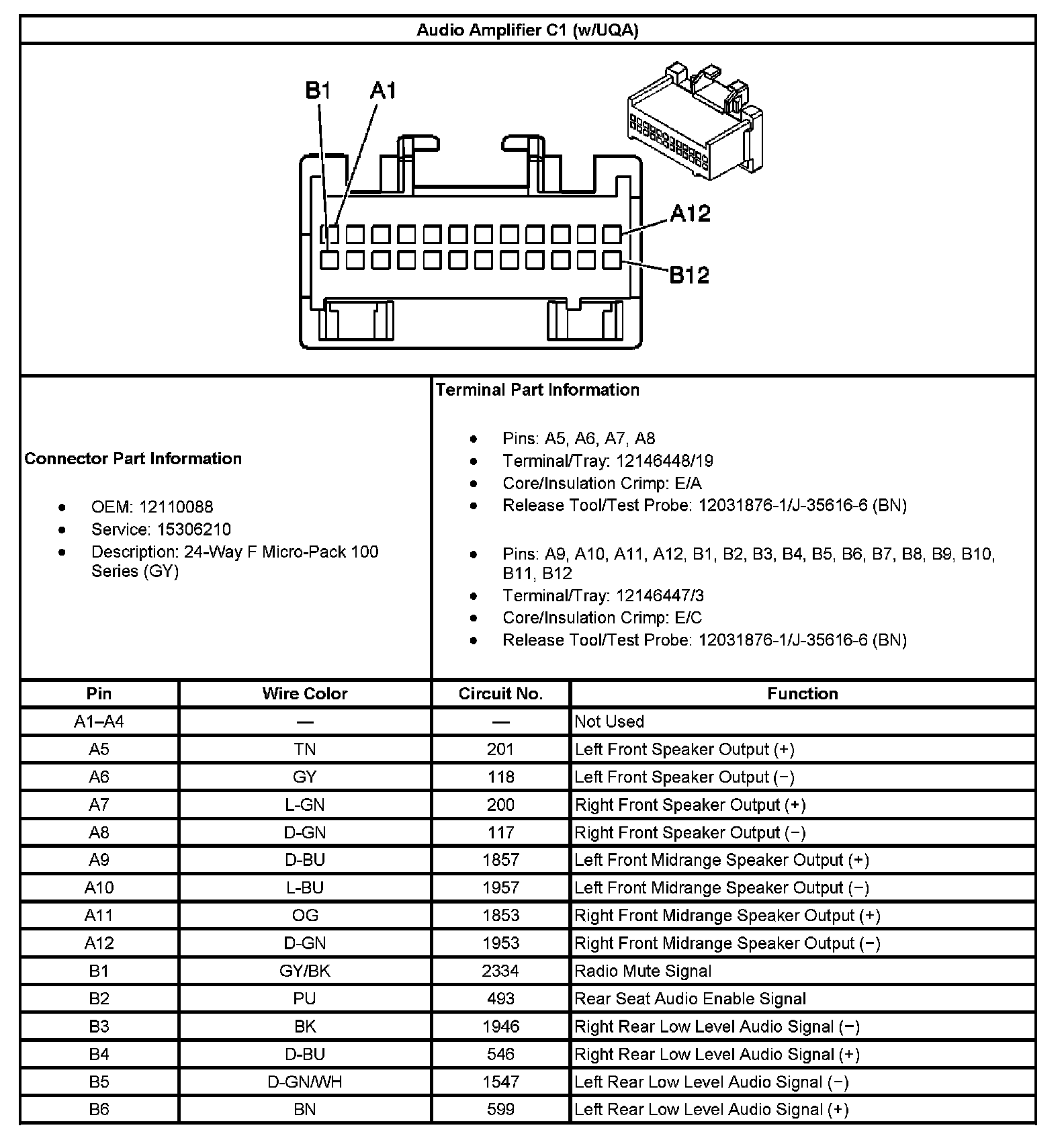

Audio Amplifier C1 (With RPO Code UQA) (Part 2):
