Chevy Truck
>>
2006
>>
TrailBlazer 4WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Sensors and Switches - Ignition System
>>
Camshaft Position Sensor
>>
Diagrams
>>
Connector Views
Connector Views

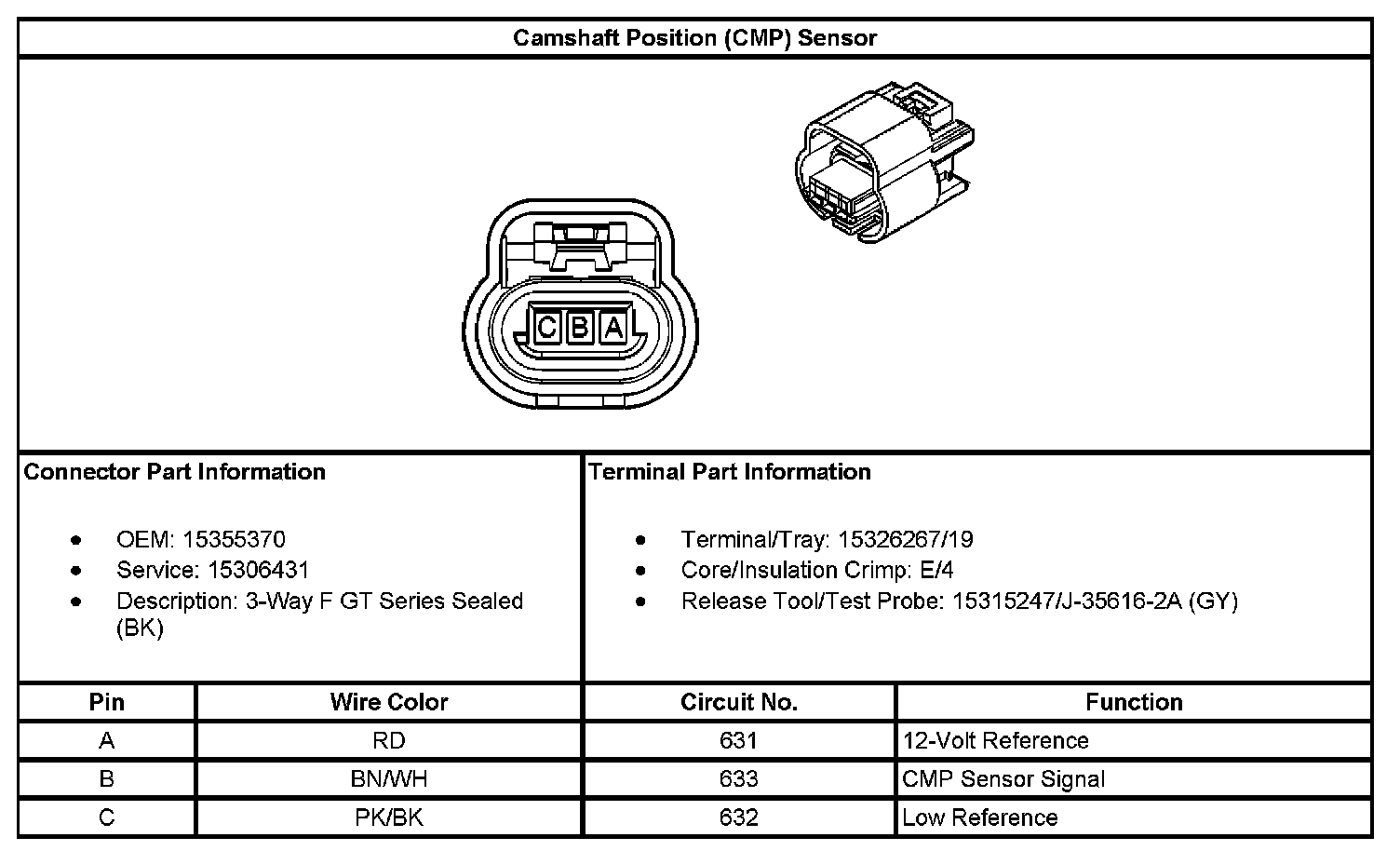

Camshoft Position (CMP) Sensor:
