I/P Harness Routing - Engine Compartment
I/P Harness Routing - Engine Compartment

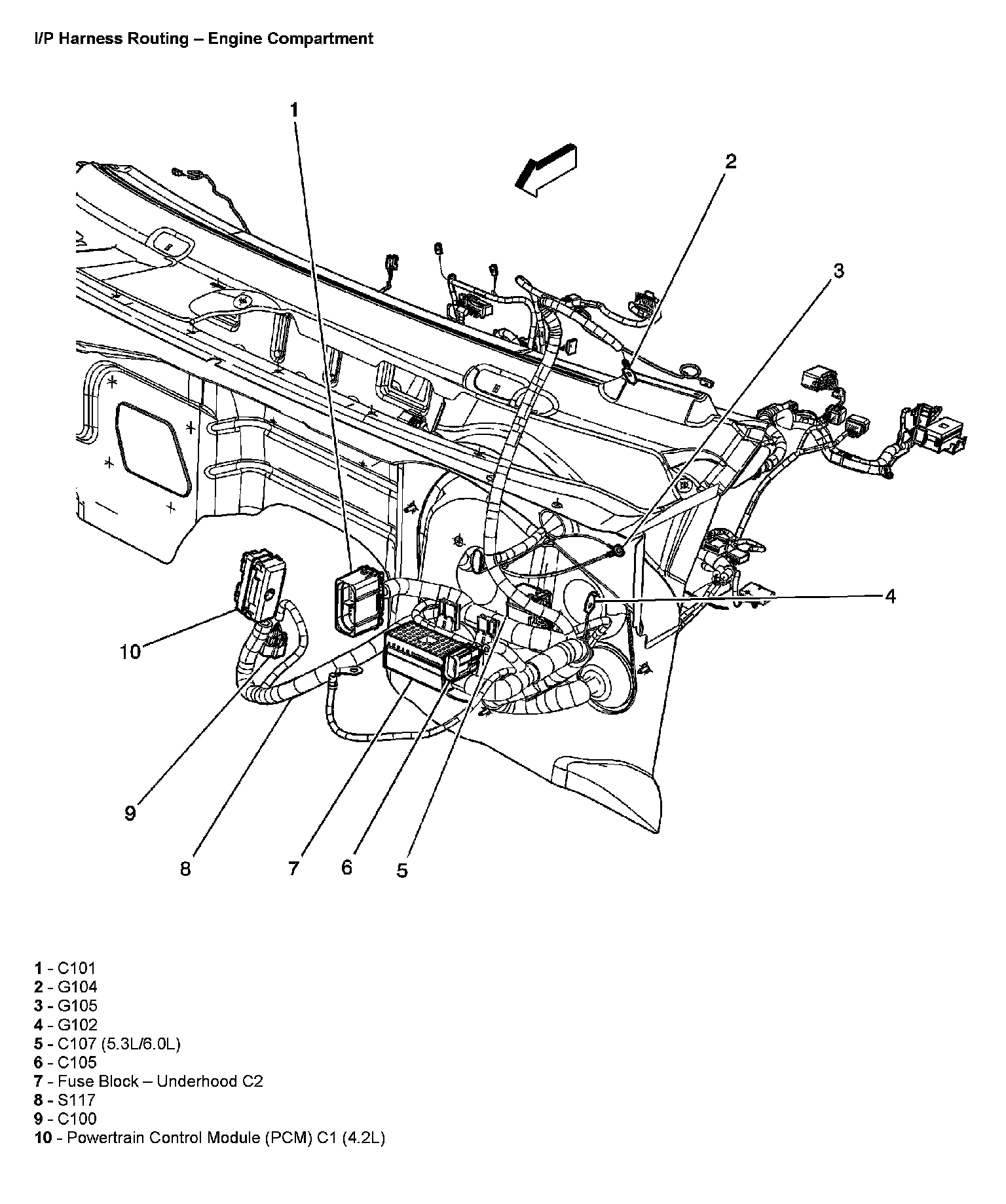

I/P Harness Routing - Engine Compartment:
