Exhaust Manifold Heat Shield Replacement - Left

Exhaust Manifold Heat Shield Replacement - Left

Removal Procedure
1. Remove the spark plugs.





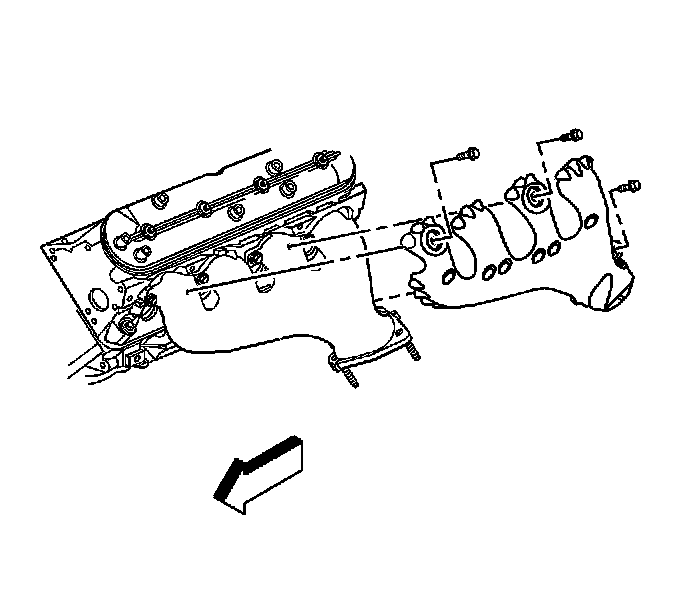

2. Remove the heat shield bolts and the shield from the exhaust manifold.

Installation Procedure





1. Notice: Refer to Fastener Notice in Service Precautions.

Install the heat shield and the bolts to the exhaust manifold.
^ Tighten the bolts to 9 Nm (80 inch lbs.).
2. Install the spark plugs.
