Chevy Truck
>>
2006
>>
TrailBlazer 4WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
LR Door
LR Door

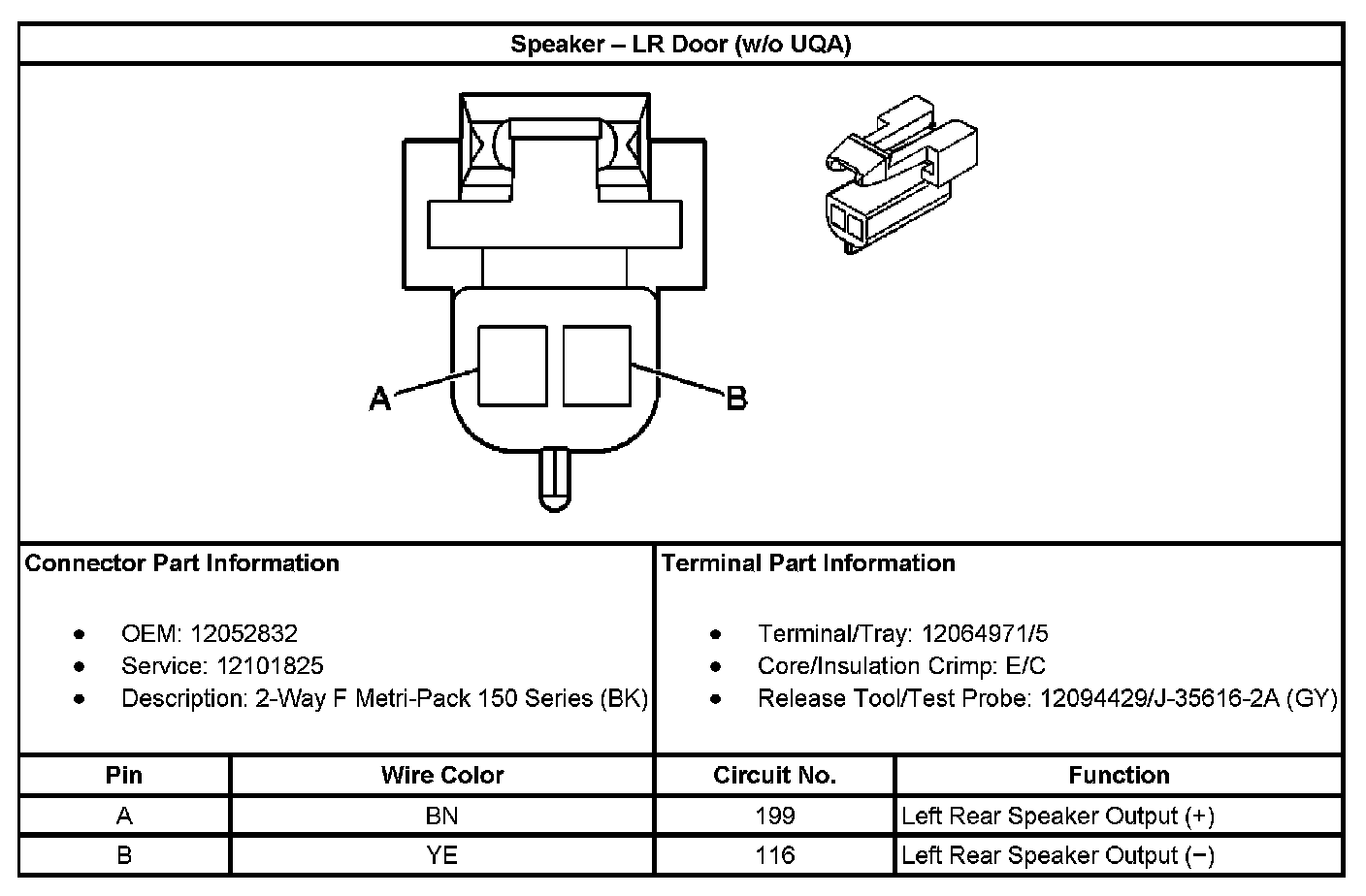

Speaker - LR Door (Without RPO Code UQA):

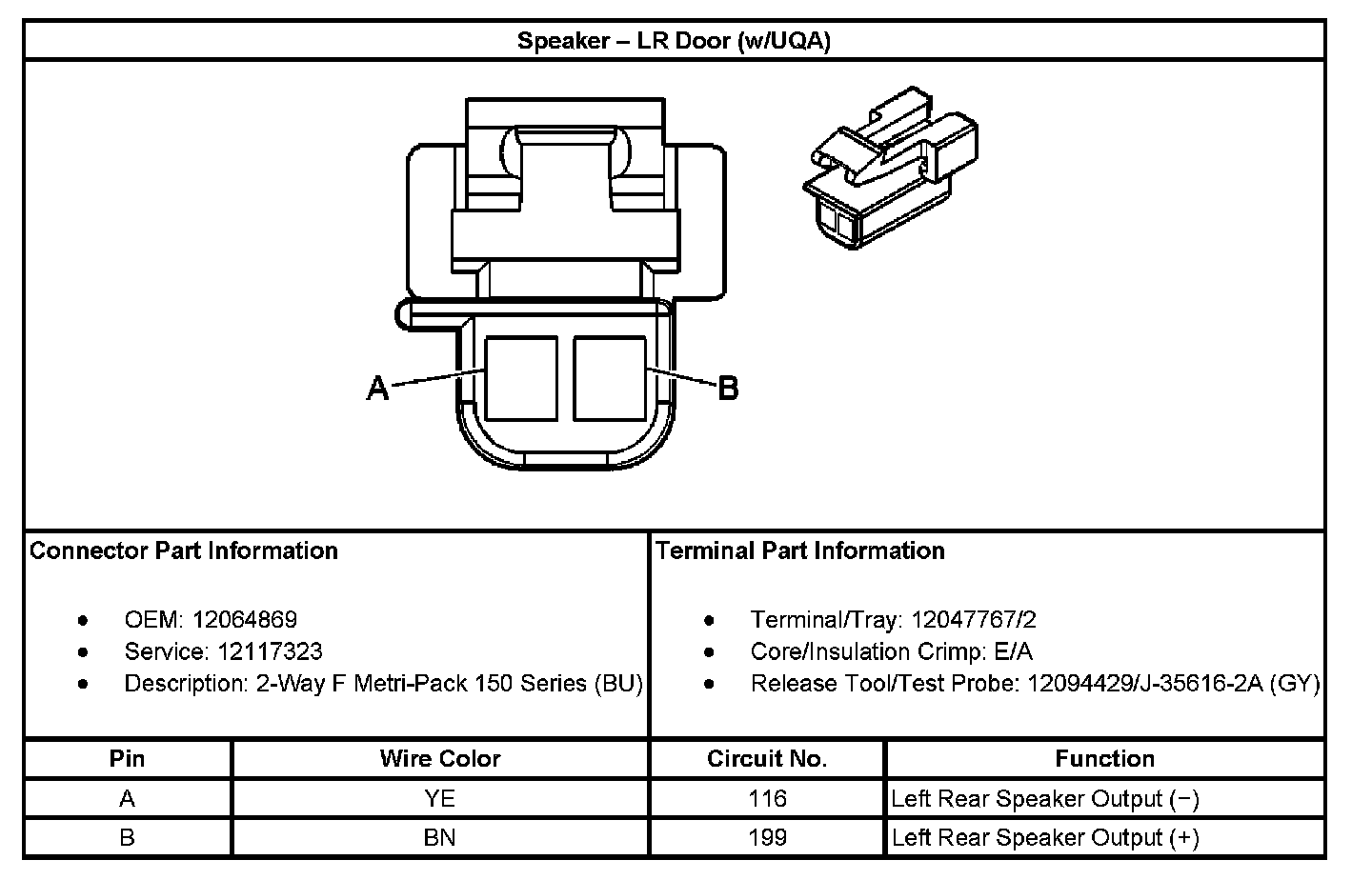

Speaker - LR Door (With RPO Code UQA):
