Chevy Truck
>>
2006
>>
TrailBlazer 4WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
>>
HVAC System - Automatic
>>

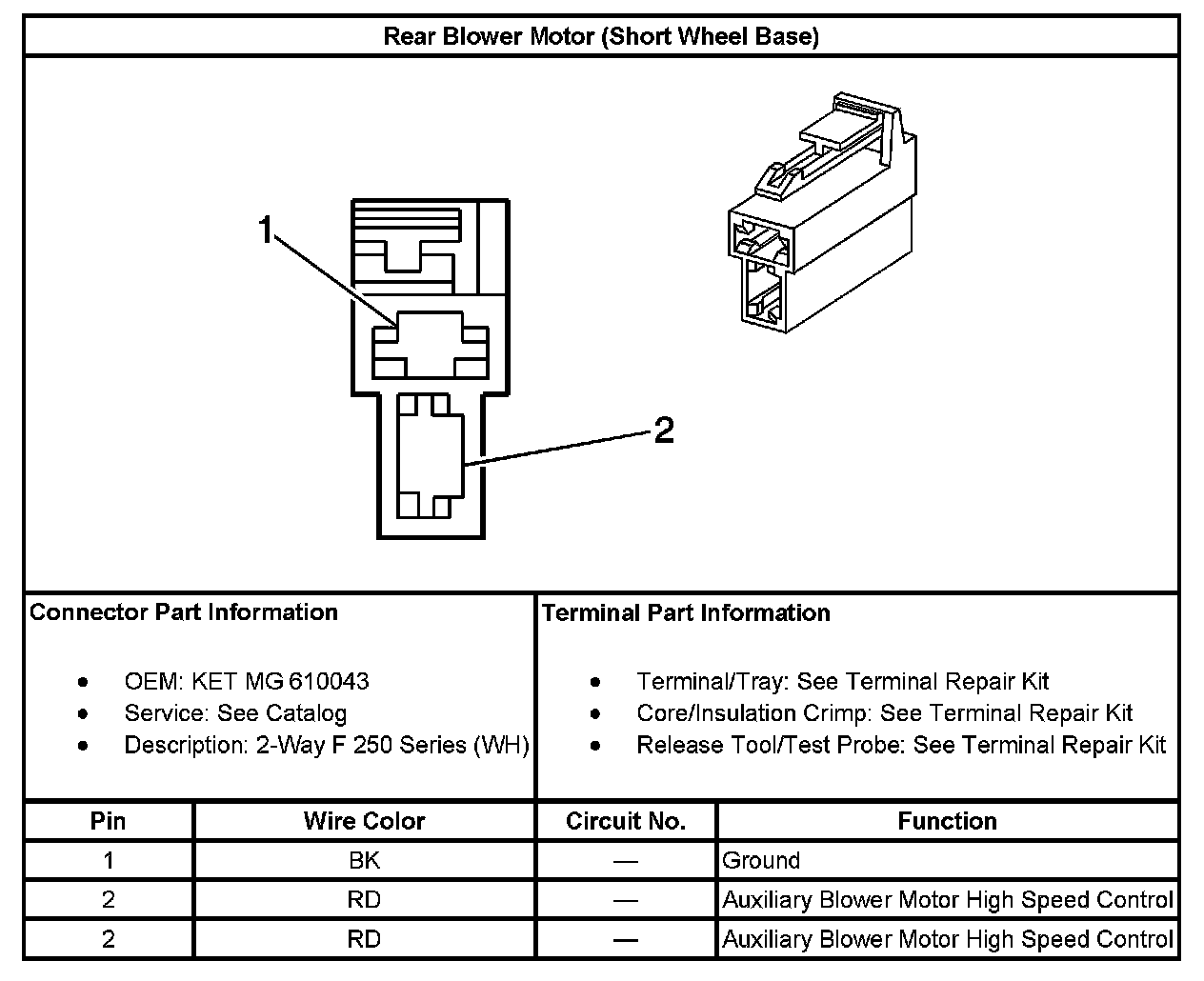

Rear Blower Motor (Short Wheel Base)
Rear Blower Motor (Short Wheel Base)
Rear Blower Motor (Short Wheel Base):
