Chevy Truck
>>
2006
>>
TrailBlazer 4WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Parking Brake System
>>
Parking Brake Warning Switch
>>
Locations
>>
Connector Locations
Connector Locations

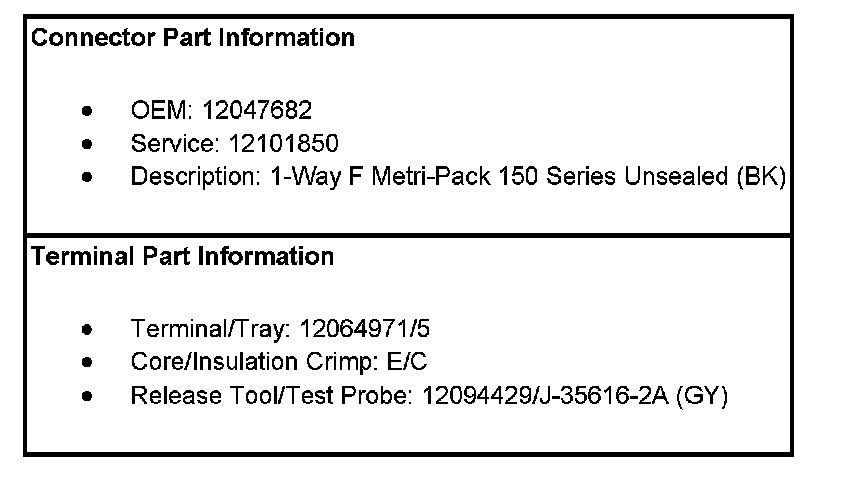

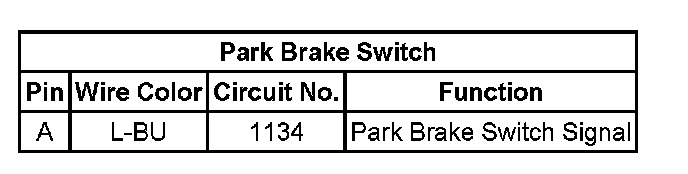

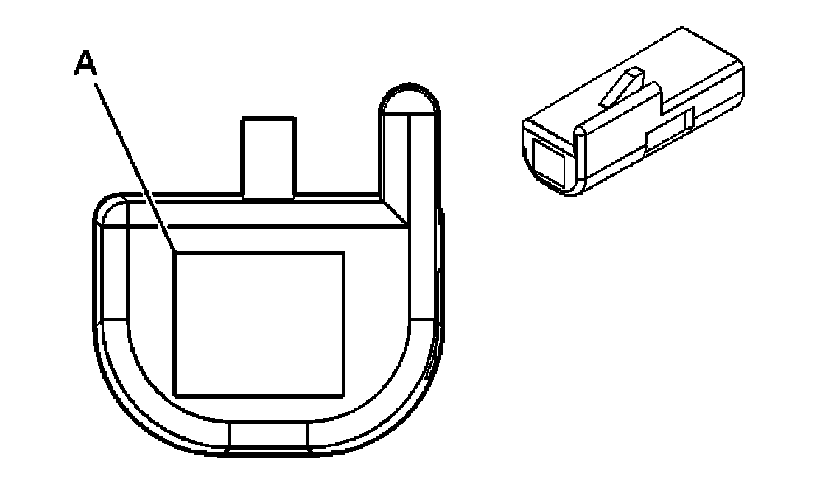

Park Brake Switch
Park Brake Switch:
Park Brake Switch:
