Home
>>
Chevy Truck
>>
2006
>>
TrailBlazer 2WD V8-6.0L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Switch
Windshield Washer Switch

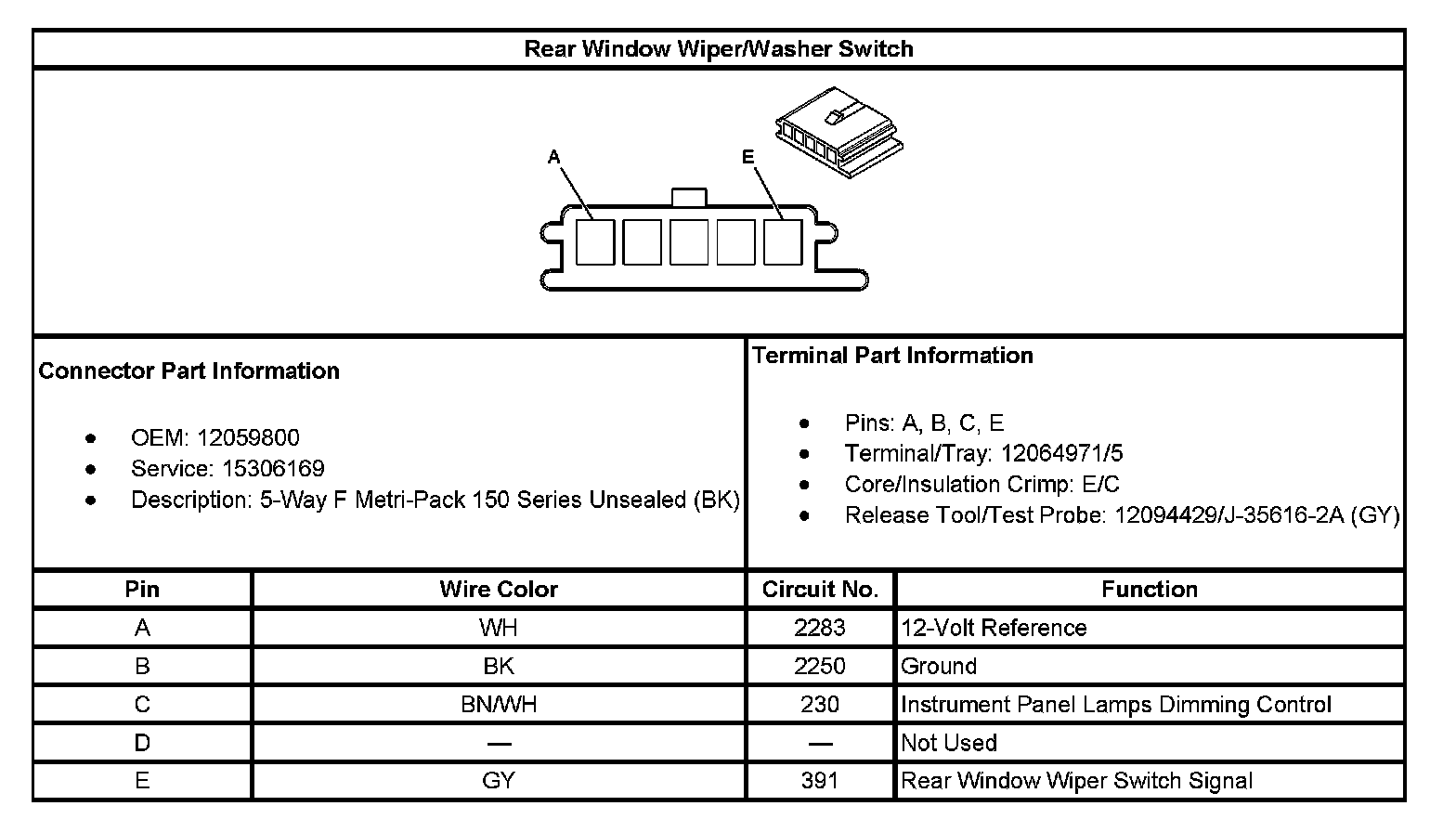

Rear Window Wiper/Washer Switch:
