Heater Control Valve
>>
HVAC System - Automatic
HVAC System - Automatic

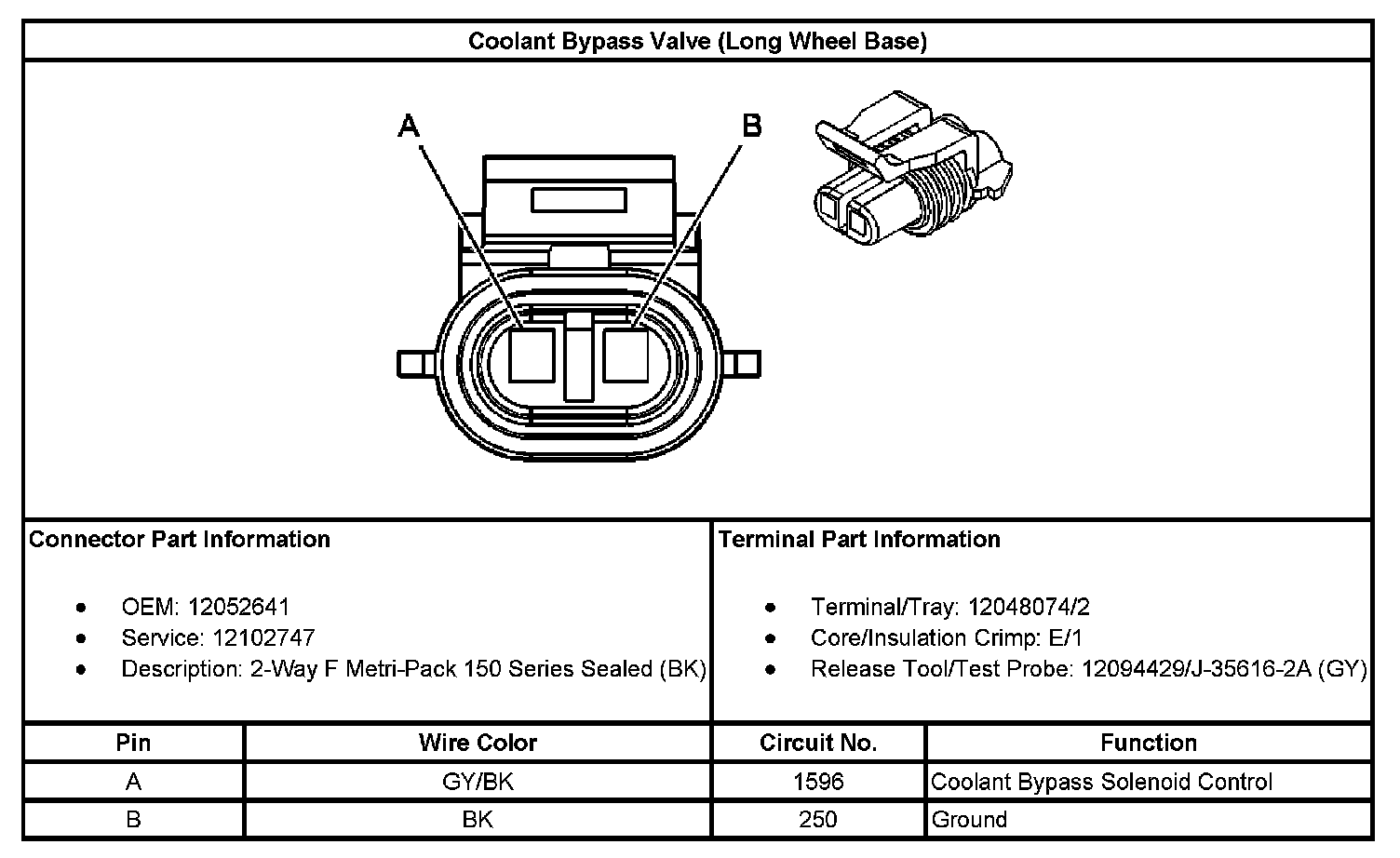

Coolant Bypass Valve (Long Wheel Base):
