Auxiliary HVAC Module

Auxiliary HVAC Module Removal and Installation (Tahoe/Yukon)

Tools Required

- J 39400-A Halogen Leak Detector

Removal Procedure

1. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging .
2. Drain the engine coolant. Refer to Cooling System Draining and Filling in Engine Cooling.
3. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

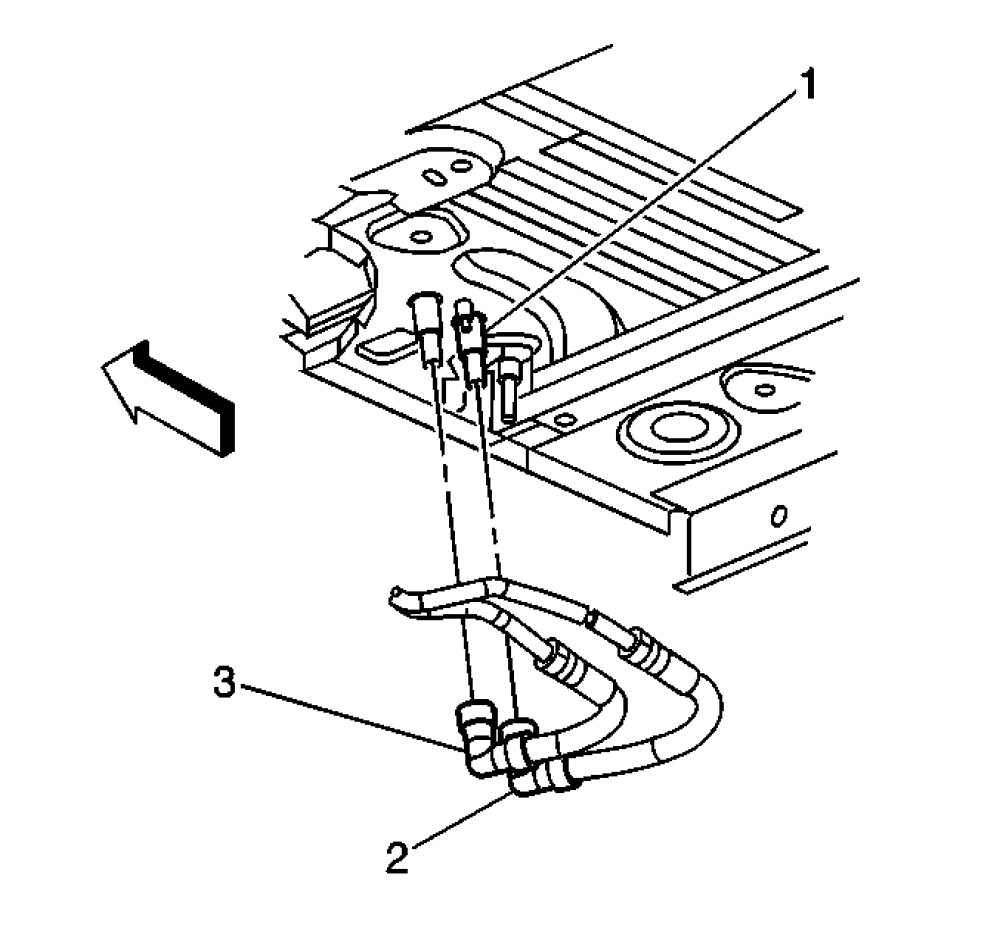

4. Disconnect the heater lines (2,3) from the auxiliary HVAC module at the underside of the vehicle.

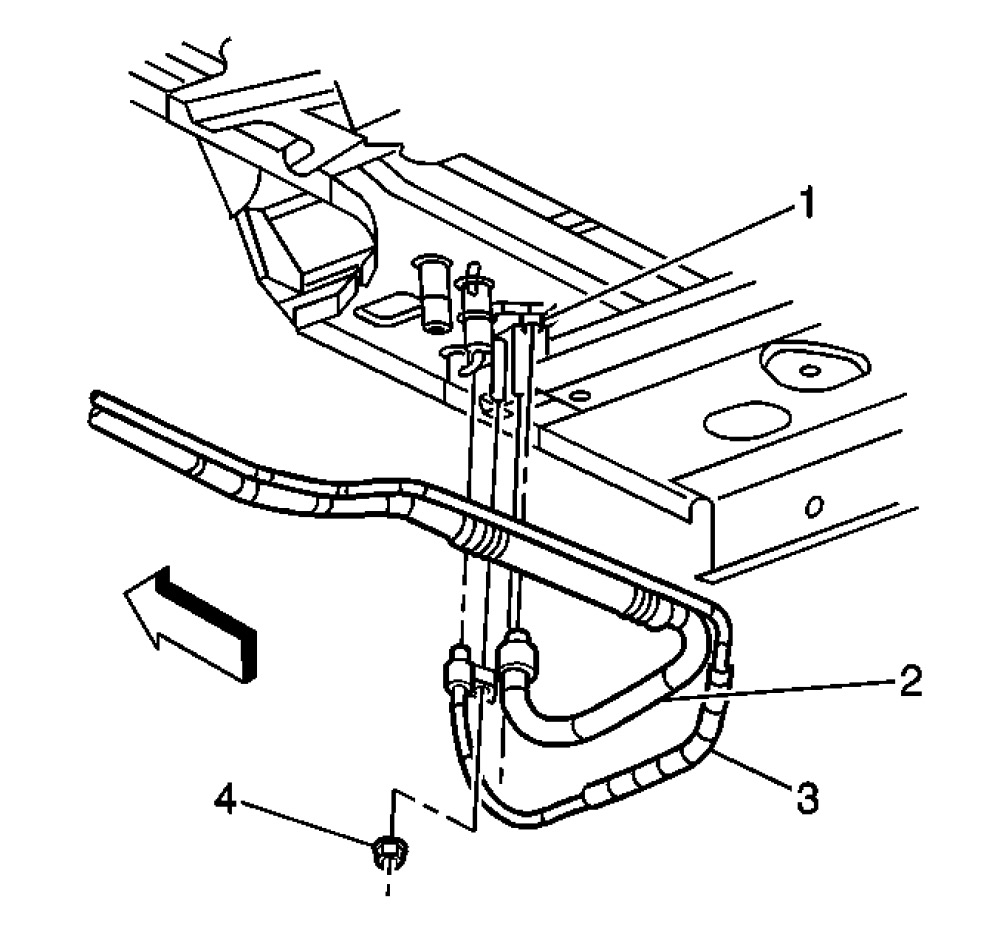

5. Disconnect the air conditioning lines (2,3) from the auxiliary HVAC module at the underside of the vehicle.

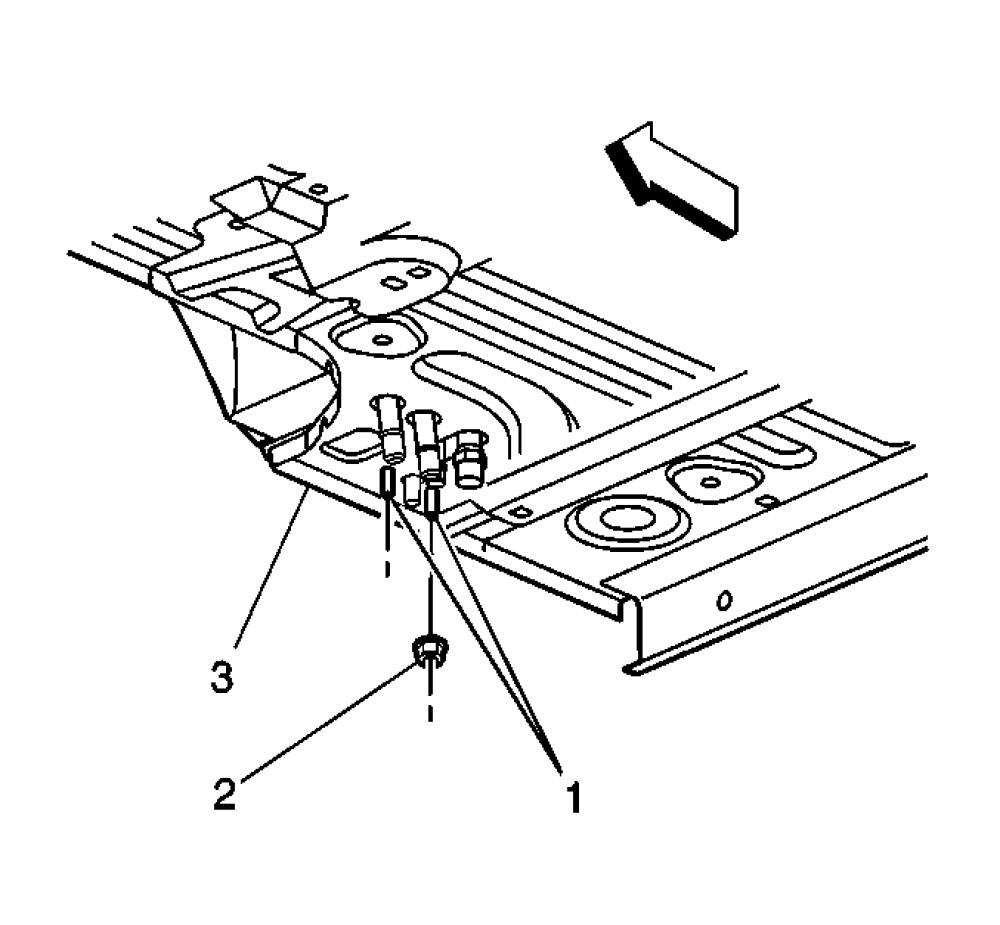

6. Remove the nuts (2) from the studs (1) that secure the auxiliary HVAC module to the underside of the vehicle.
7. Lower the vehicle.
8. Remove the right rear quarter trim panel. Refer to Rear Quarter Trim Panel Replacement - Right Side.
9. Remove the electronic suspension control module. Refer to Electronic Suspension Control Module Replacement.
10. Disconnect the electrical connectors from the Auxiliary HVAC module.

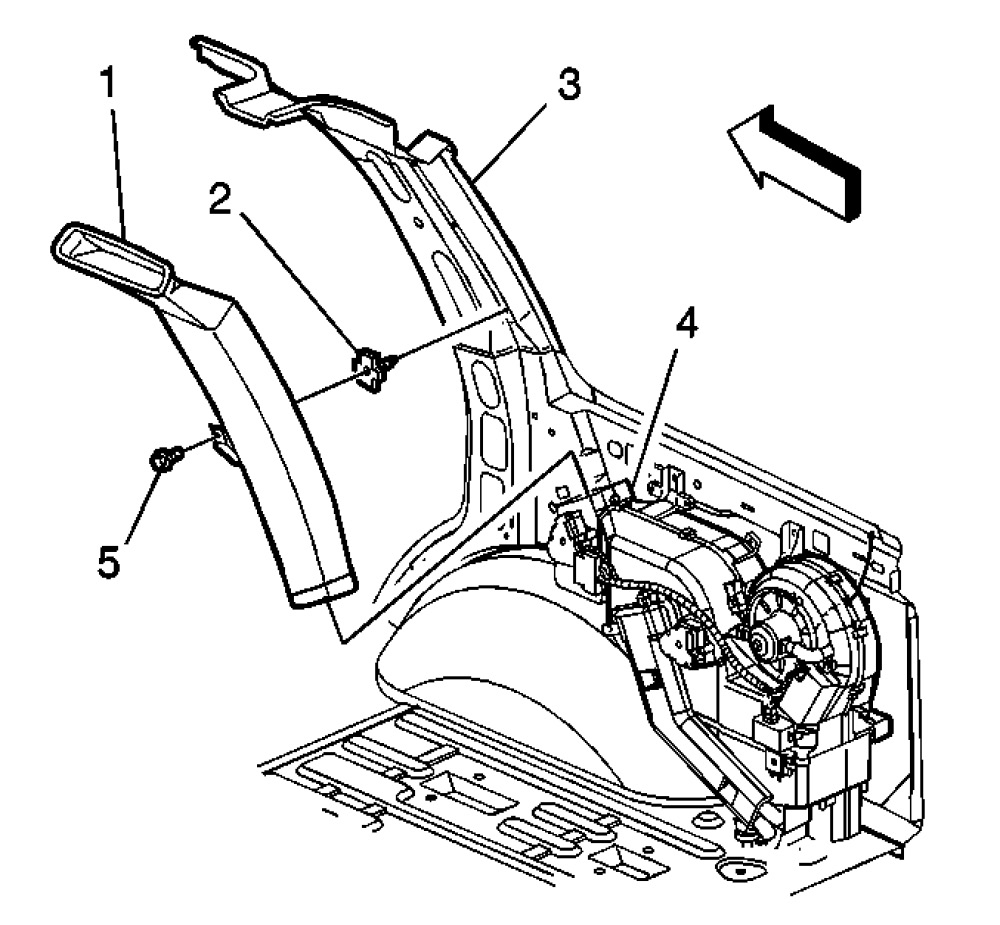

11. Remove the fastener (5) for the upper auxiliary air duct (1). Carefully slide the duct up, into the headliner, until the bottom edge of the duct is above the air distributor duct.

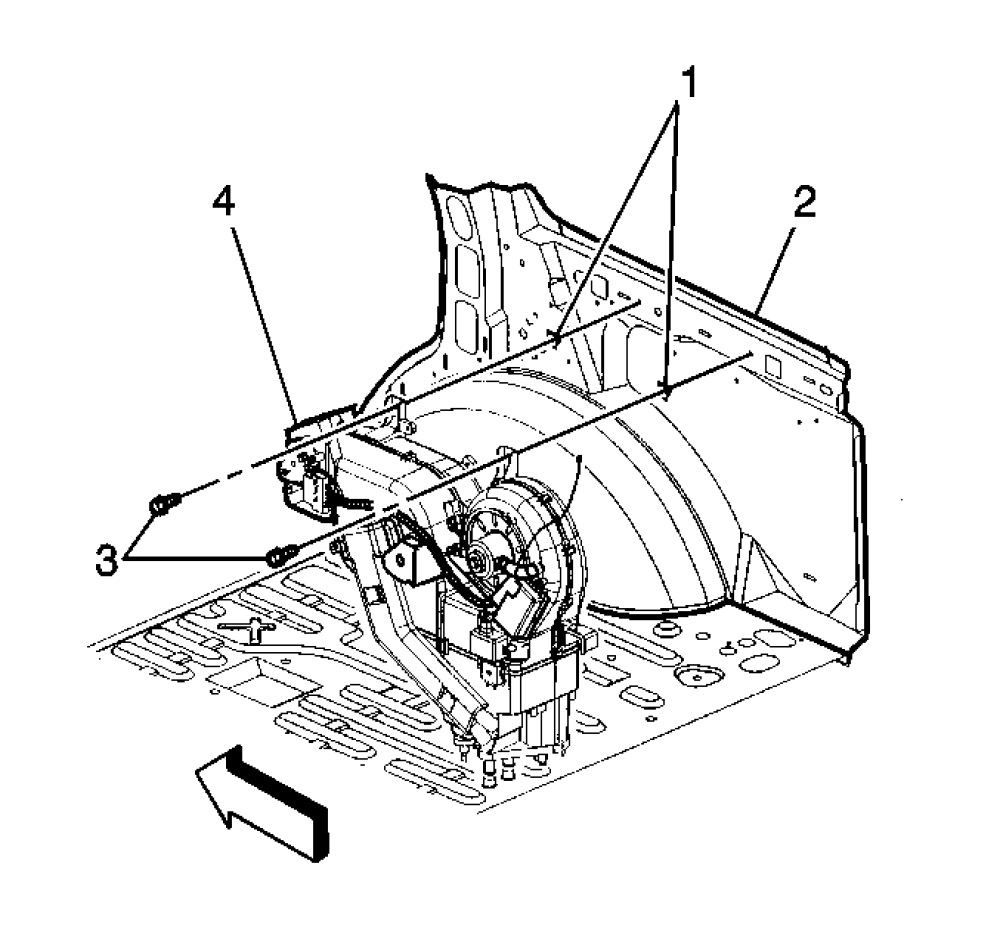

12. Remove the fasteners (3) retaining the auxiliary HVAC module to the vehicle.
13. Remove the auxiliary HVAC module (4) from the vehicle.

Installation Procedure






1. Install the auxiliary HVAC module assembly (4) to the vehicle.
2. Install the two bolts (3) inside the vehicle in order to retain the auxiliary HVAC module to the vehicle.






3. Install the upper auxiliary air duct (1) to the air distributor duct. Install the fastener (5).
4. Connect the electrical connectors to the auxiliary HVAC module.
5. Install the electronic suspension control module. Refer to Electronic Suspension Control Module Replacement in Electronic Suspension Control.
6. Install the right rear quarter trim panel. Refer to Rear Quarter Trim Panel Replacement - Right Side in Interior Trim.
7. Raise the vehicle.






Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

8. Install the nuts (2) that secure the auxiliary HVAC module to the vehicle.

Tighten
Tighten the nuts to 9 Nm (80 lb in).







9. Install the air conditioning lines (2,3) and the nut (4) to the auxiliary HVAC module.

Tighten
Tighten the nut to 16 Nm (12 lb ft).






10. Install the heater lines (2,3) to the auxiliary HVAC module at the underside of vehicle.
11. Lower the vehicle.
12. Fill the engine coolant. Refer to Cooling System Draining and Filling .
13. Recharge the refrigerant to the system. Refer to Refrigerant Recovery and Recharging .
14. Leak test the fittings of the component using the J 39400-A.
