Home >> Chevy Truck >> 2006 >> Tahoe 2WD V8-4.8L VIN V >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block - I/P - C2

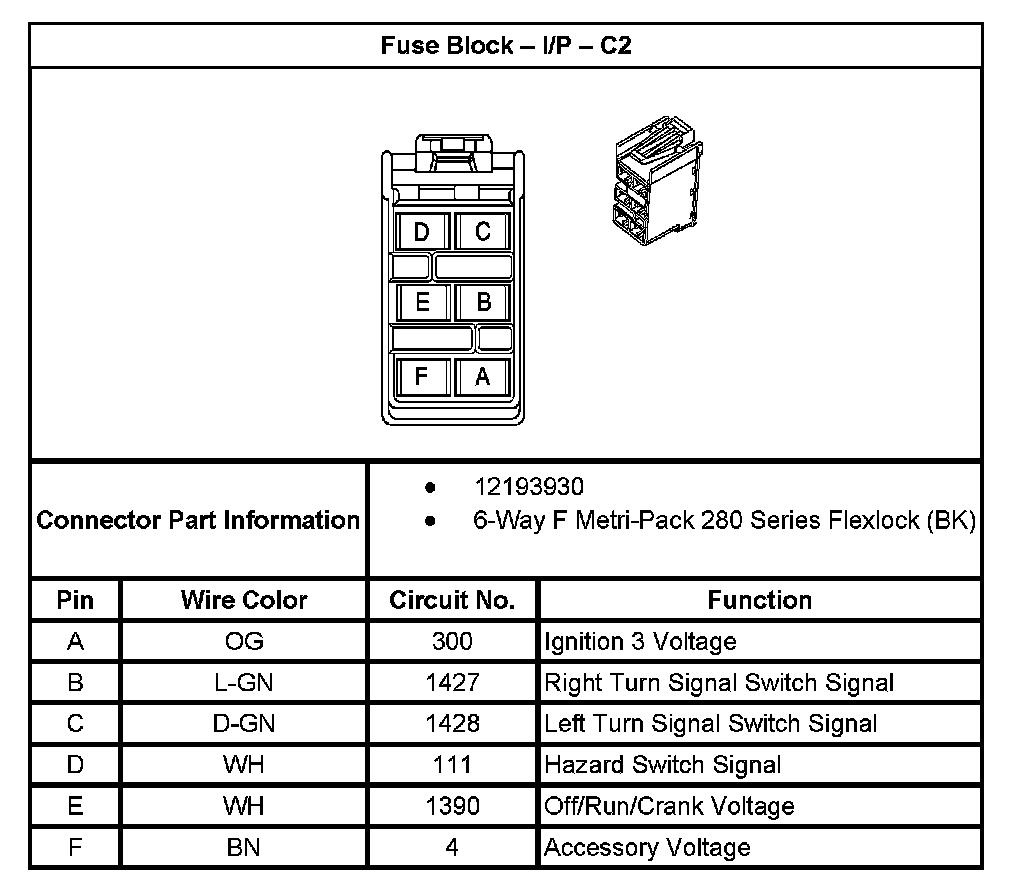

Fuse Block - I/P - C2

Fuse Block - I/P - C2:
