Cabin Temperature Sensor / Switch
Cabin Temperature Sensor / Switch

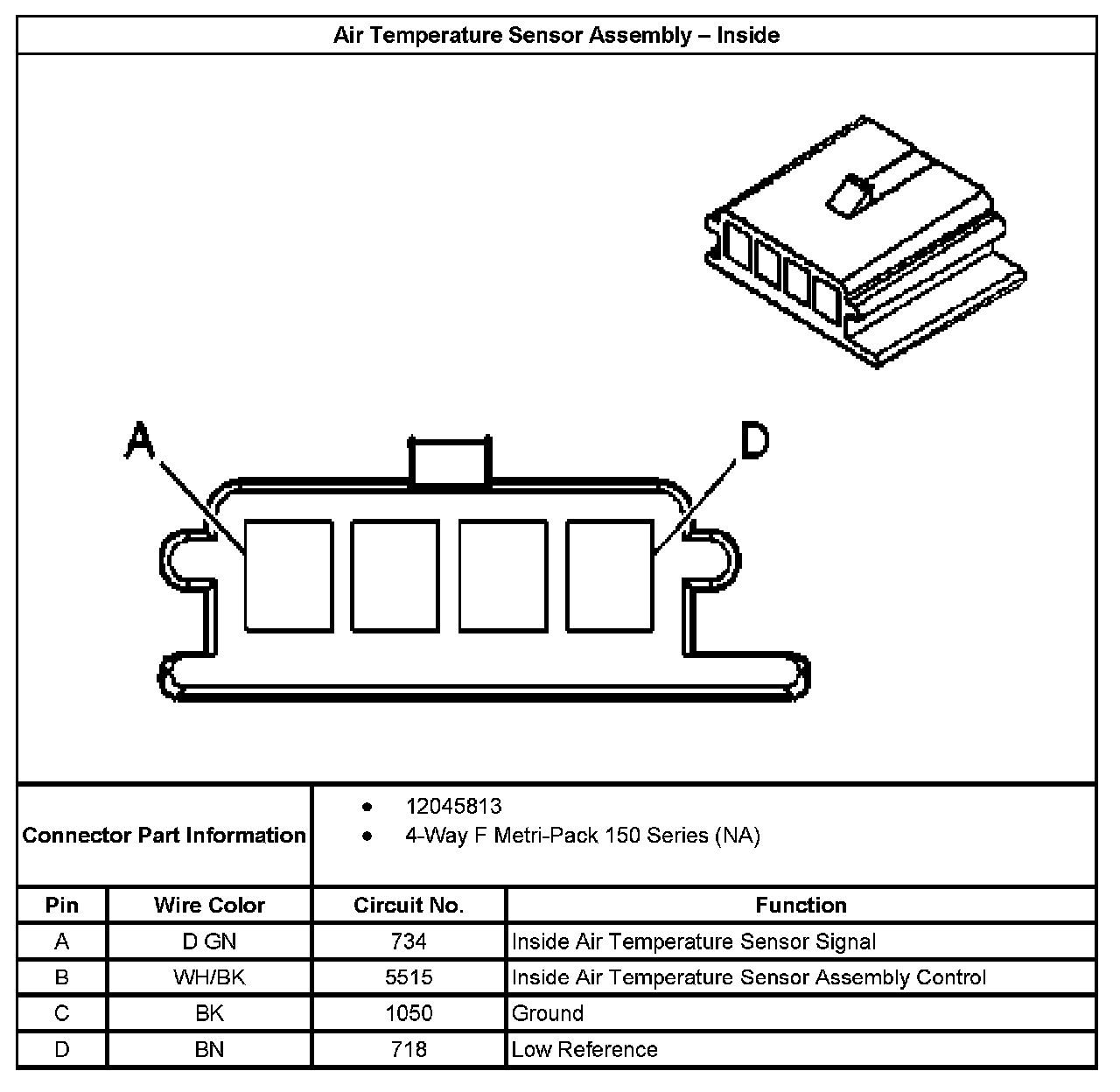

Air Temperature Sensor Assembly - Inside:

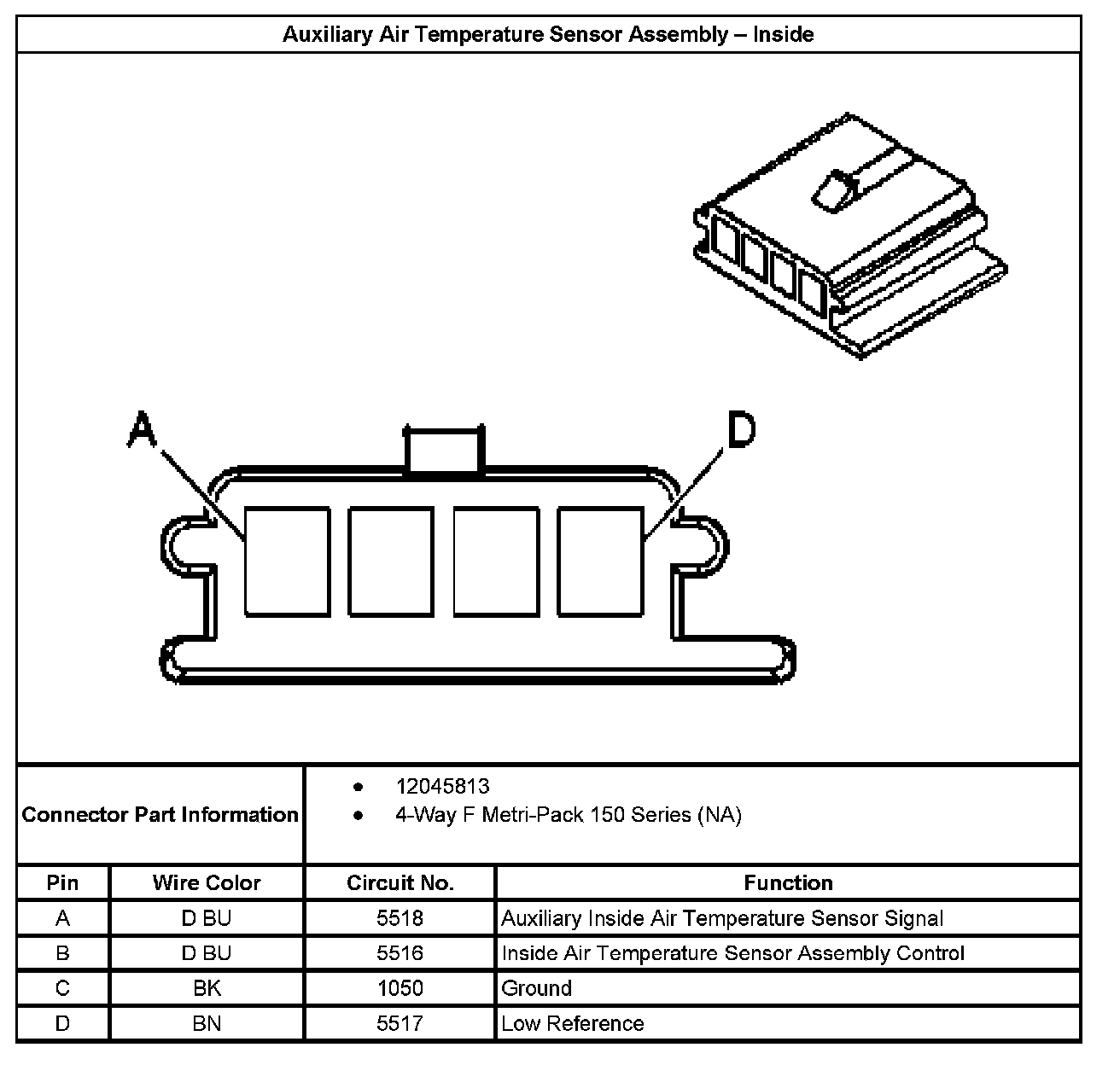

Auxiliary Air Temperature Sensor Assembly - Inside:
