Home
>>
Chevy Truck
>>
2006
>>
Suburban 3/4 Ton 4WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Tank Unit
>>

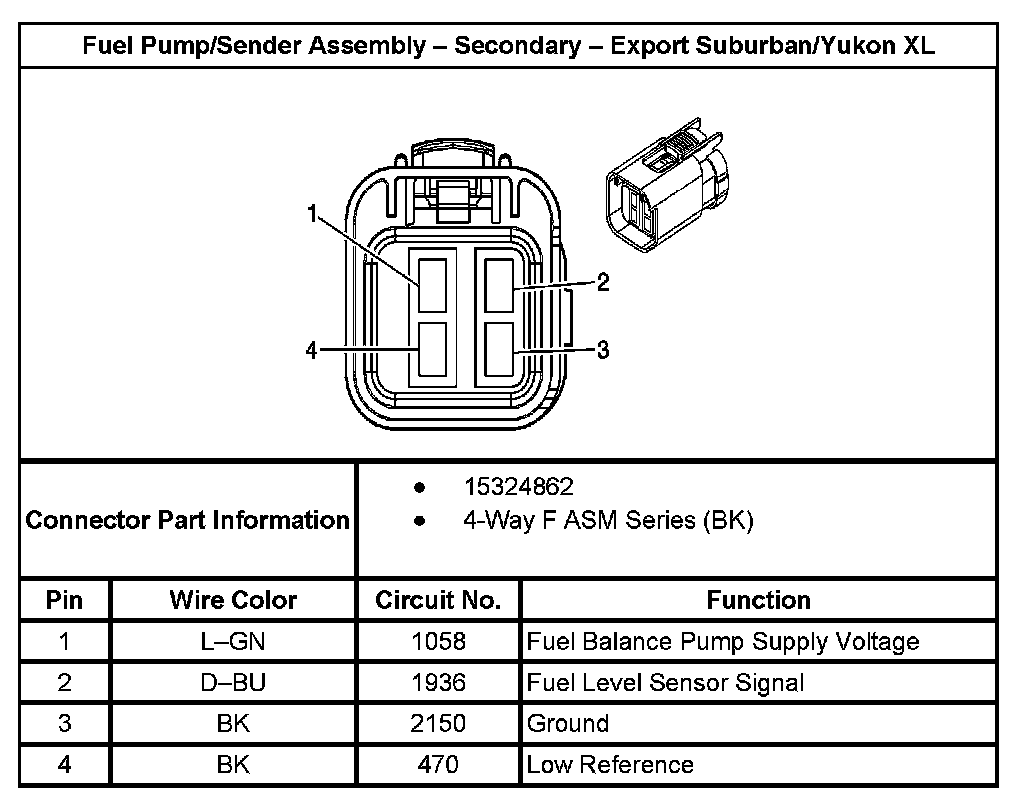

Fuel Pump/Sender Assembly - Secondary - Export
Fuel Pump/Sender Assembly - Secondary - Export
Fuel Pump/Sender Assembly - Secondary - Export:
