Deflector Replacement - Instrument Panel Air - Center

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - CENTER

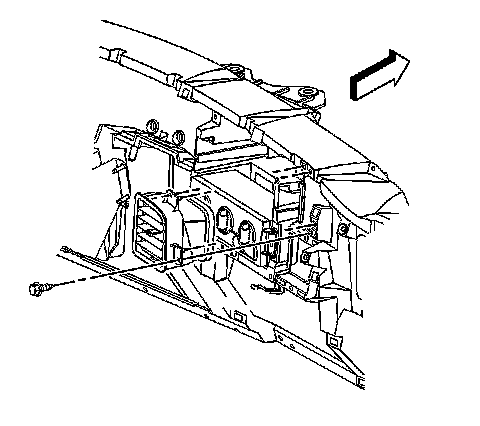

REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) bezel.
2. Remove the I/P trim panel.




3. Remove the deflector mounting screws.
4. Remove the deflector from the I/P.

INSTALLATION PROCEDURE




1. Install the deflector to the I/P.
2. Install the deflector mounting screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screw to 1.6 N.m (14 lb in).

3. Install the I/P trim panel.
4. Install the I/P bezel.
