Home
>>
Chevy Truck
>>
2006
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
LR Door
LR Door

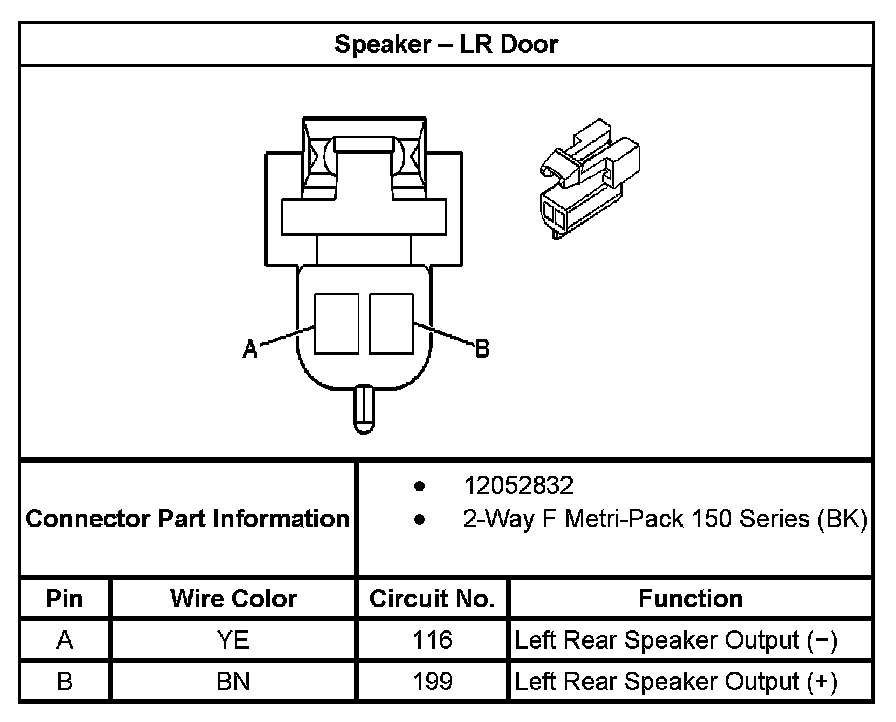

Speaker - LR Door:
