Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Rear Door Window Motor

Rear Door Window Motor

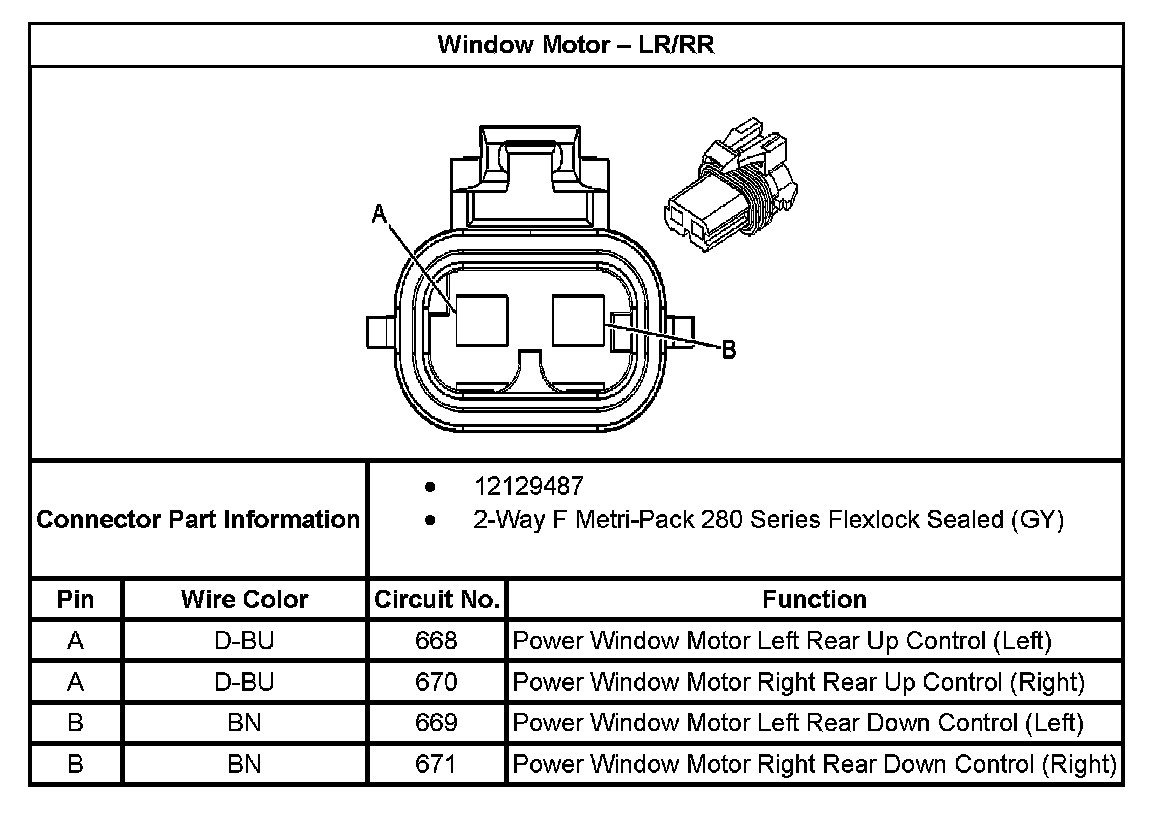

Window Motor - LR/RR:
