Home
>>
Chevy Truck
>>
2006
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C400 - C499
>>
C402
C402

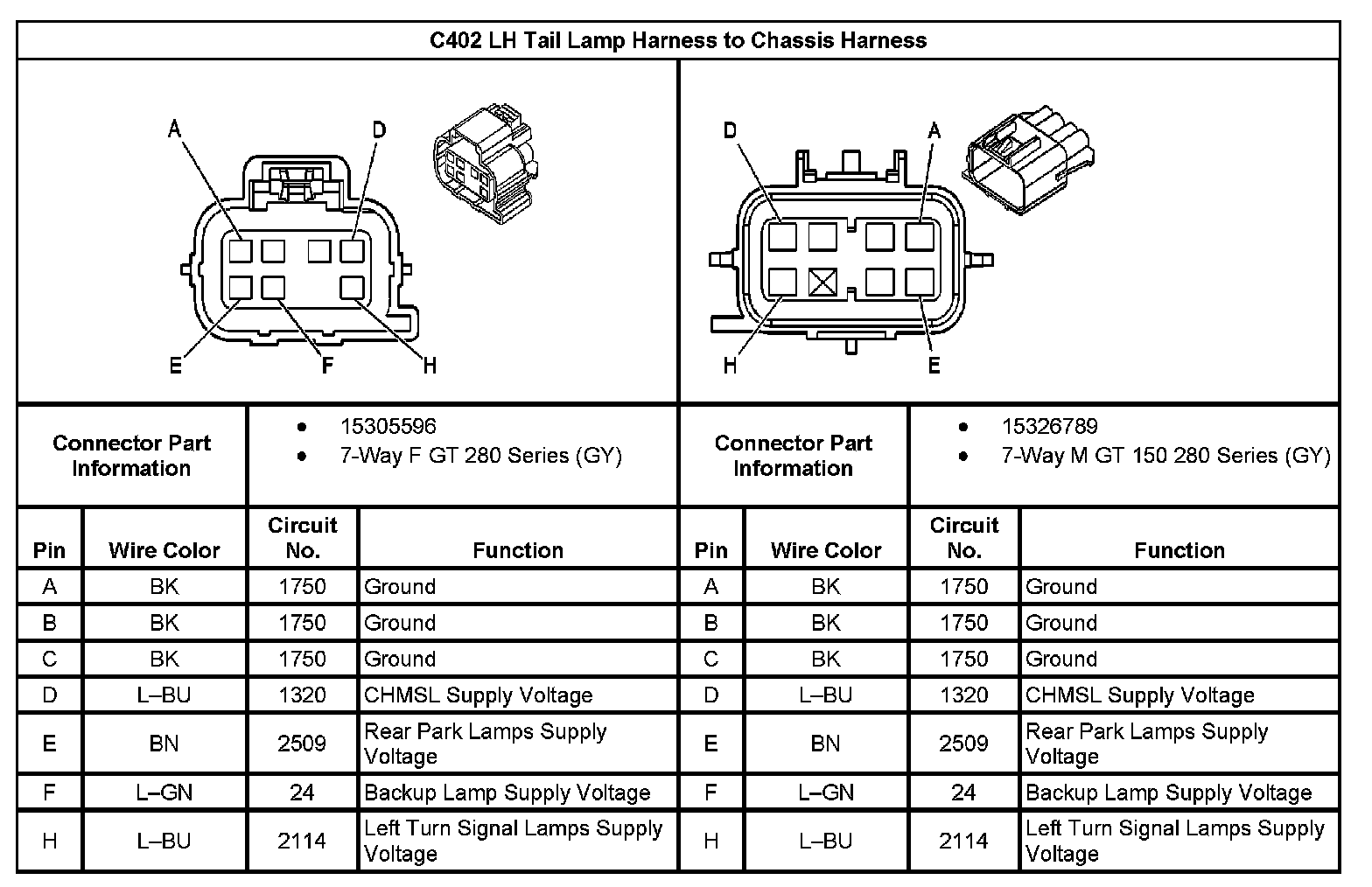

C402 LH Tail Lamp Harness To Chassis Harness:
