Chevy Truck
>>
2006
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C300 - C399
>>
C397
C397

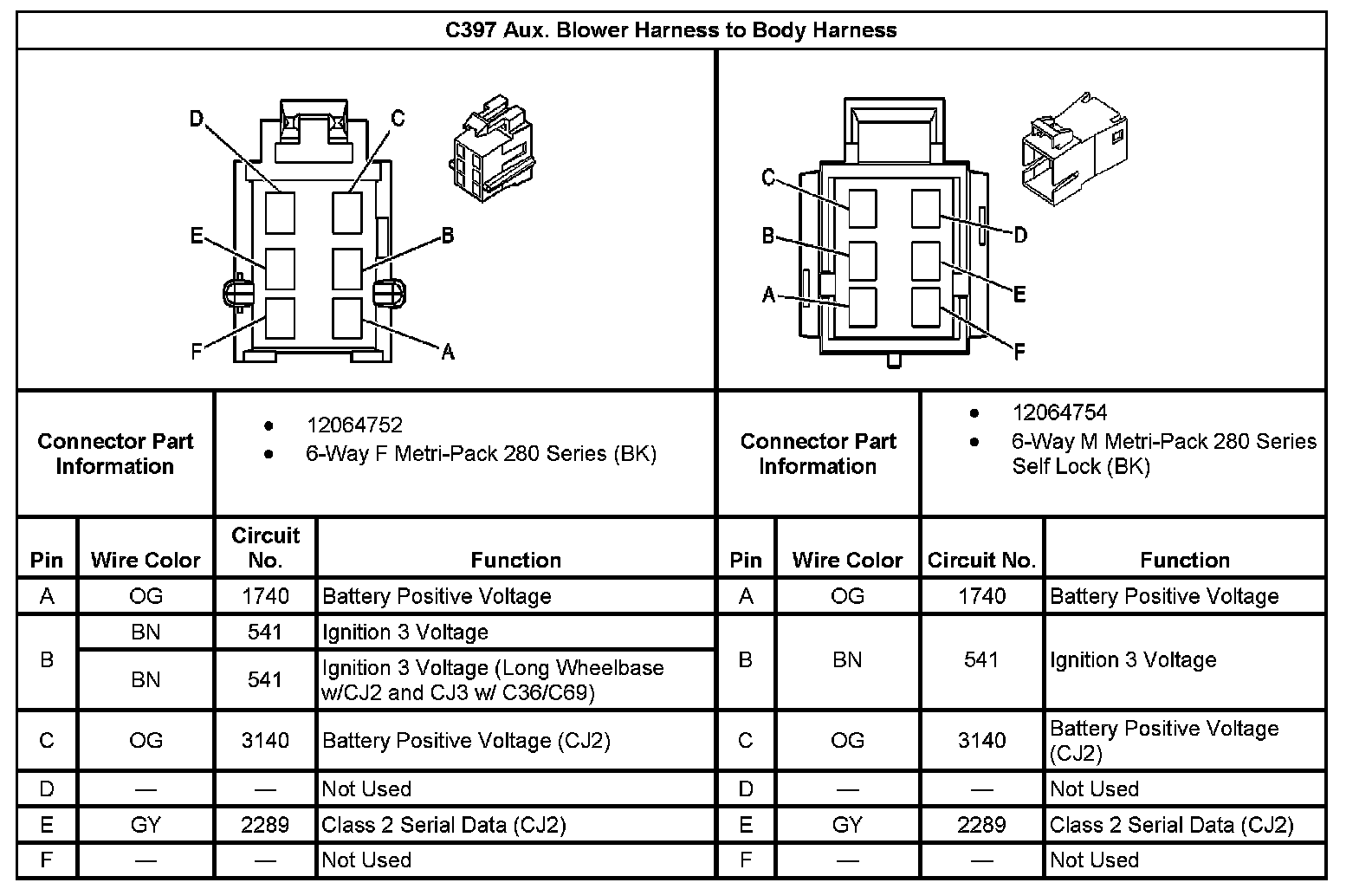

C397 Aux. Blower Harness To Body Harness:
