Home
>>
Chevy Truck
>>
2006
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Hydraulic Brake Booster Pump
Hydraulic Brake Booster Pump

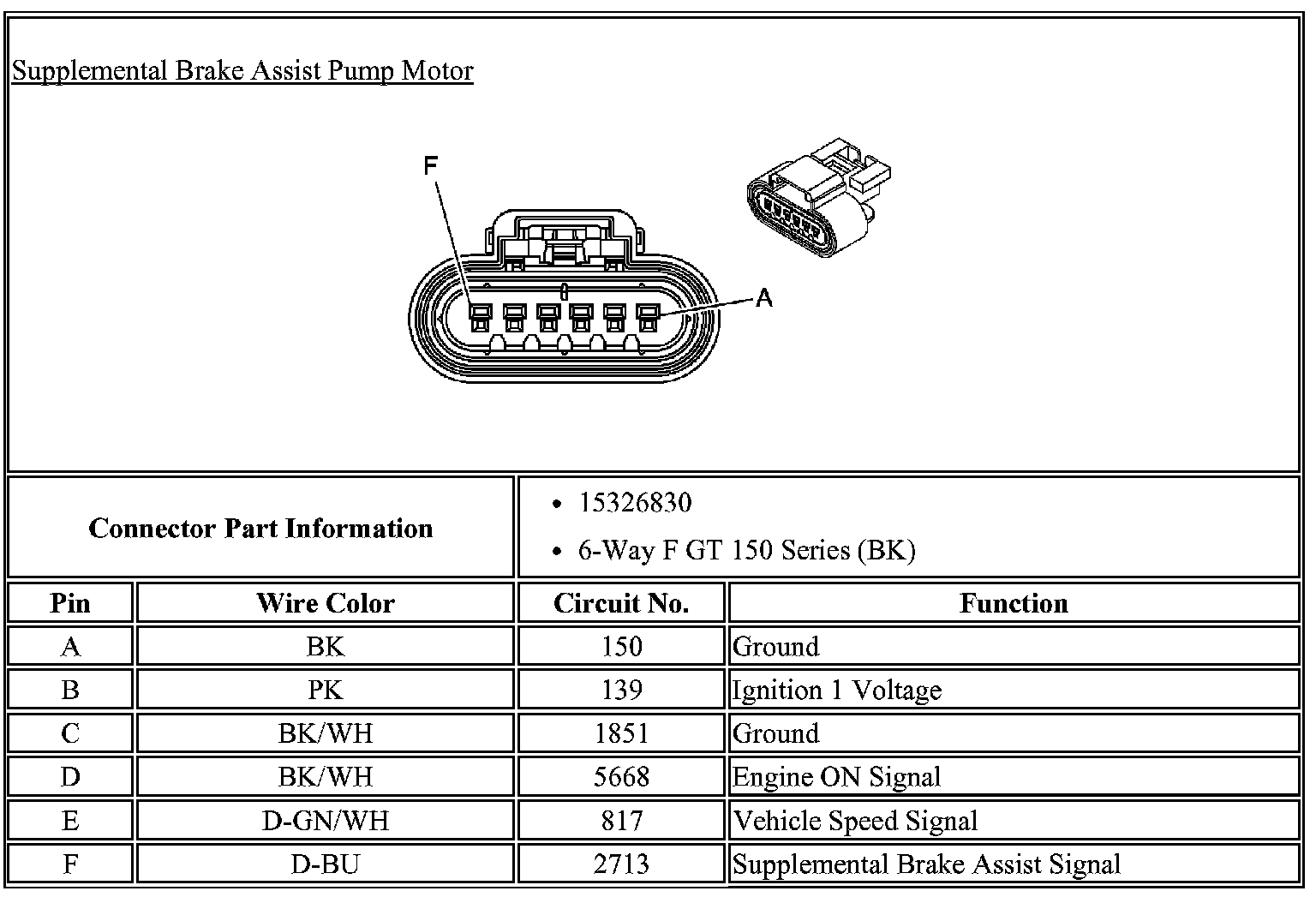

Supplemental Brake Assist Pump Motor:
