Auxiliary Power Outlet
>>
Auxiliary Power Outlet - Front
Auxiliary Power Outlet - Front

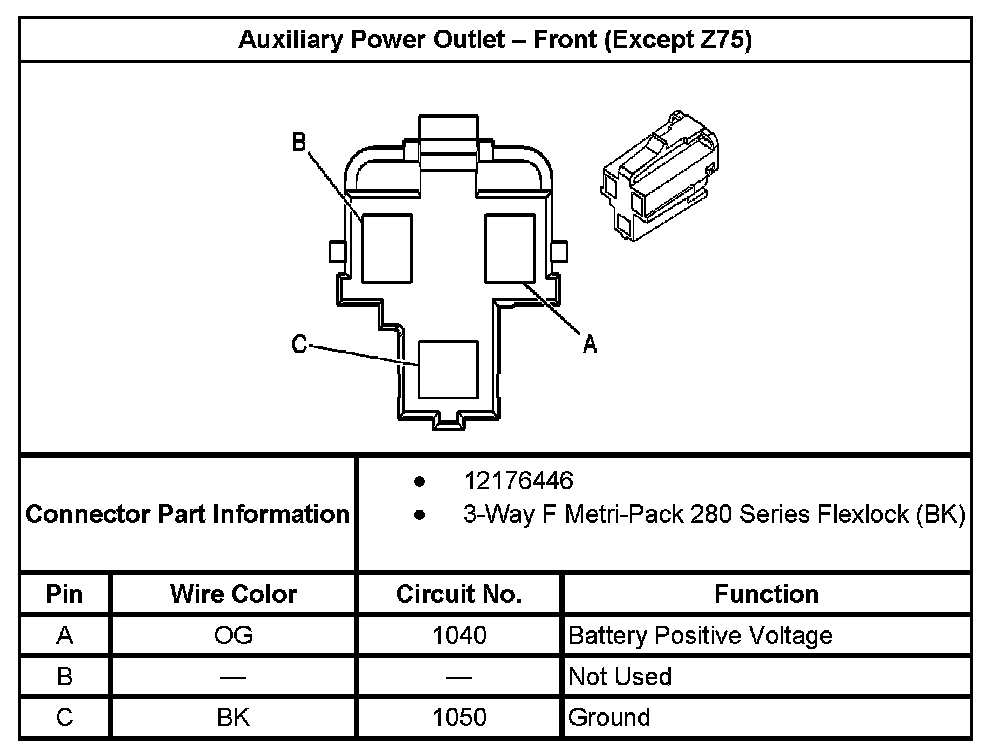

Auxillary Power Outlet - Front (Except RPO Code Z75):
