Auxiliary Power Outlet
>>

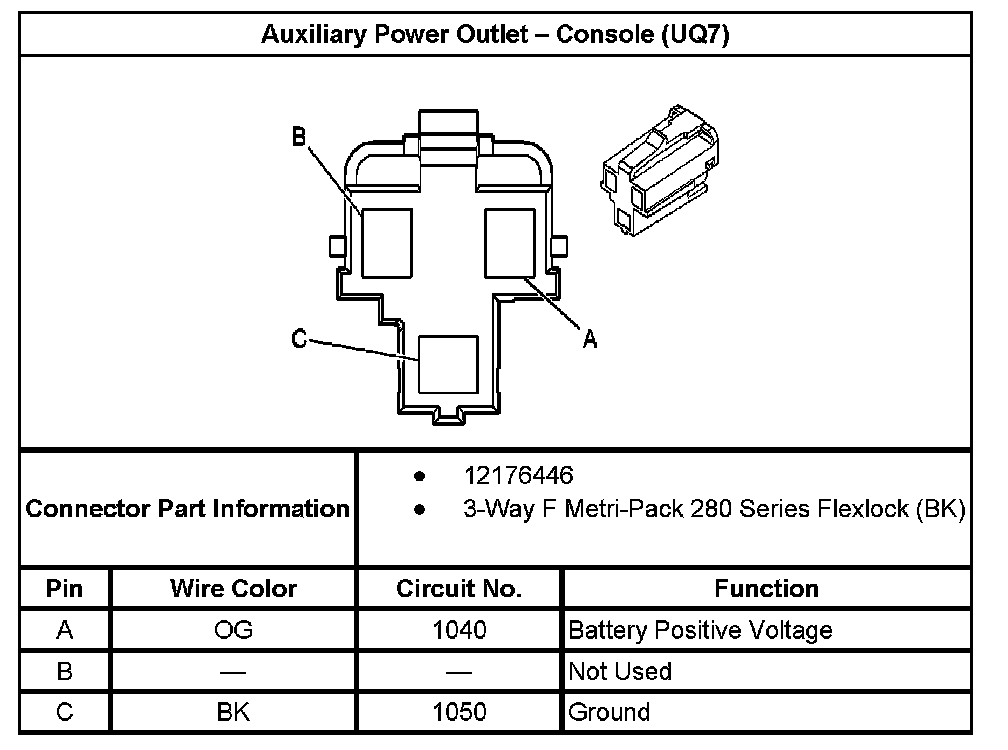

Auxiliary Power Outlet - Console
Auxiliary Power Outlet - Console
Auxillary Power Outlet - Bin (With RPO Code UQ7):
