Chevy Truck
>>
2006
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Power Outlet
>>
Auxiliary Power Outlet - Bin
Auxiliary Power Outlet - Bin

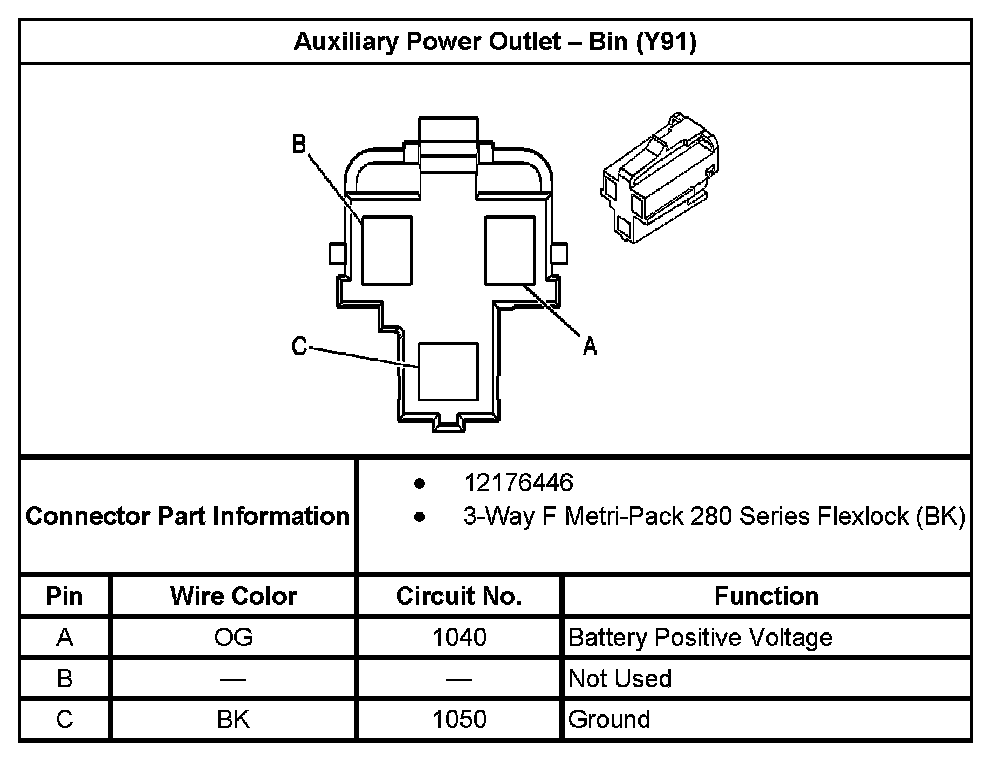

Auxillary Power Outlet - Bin (With RPO Code Y91):
