Chevy Truck
>>
2006
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
>>
4L80-E/4L85-E - Automatic Transmission
>>
Automatic Transmission Output Speed Sensor (OSS)
Automatic Transmission Output Speed Sensor (OSS)
Automatic Transmission Output Speed Sensor (OSS)

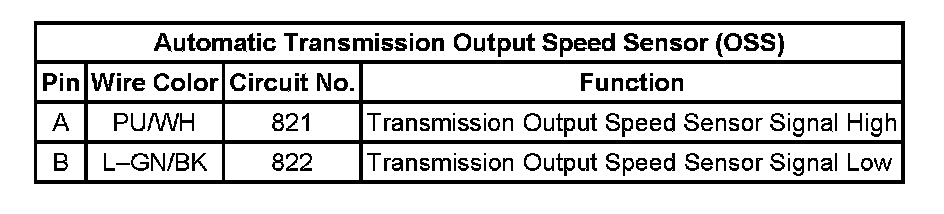

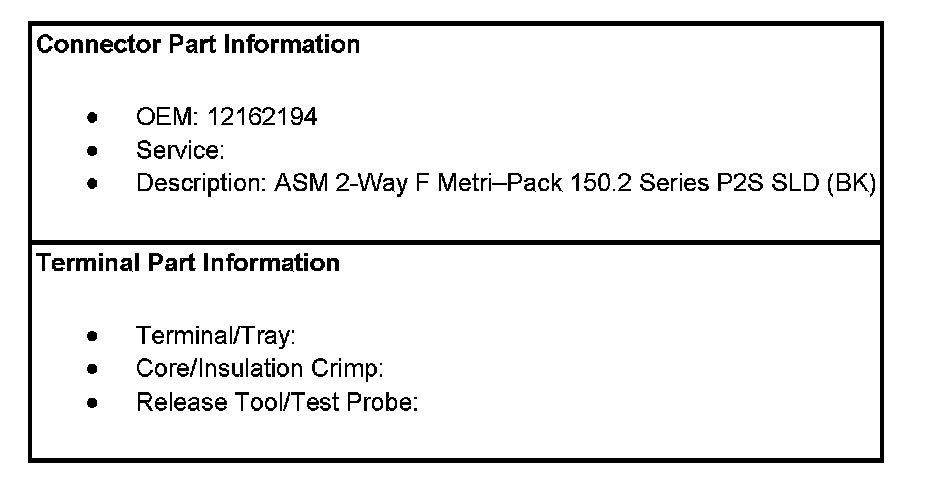

Automatic Transmission Output Speed Sensor (OSS):
