Home
>>
Chevy Truck
>>
2006
>>
Silverado 2500 4WD V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Diagrams
>>
Connector Views
>>

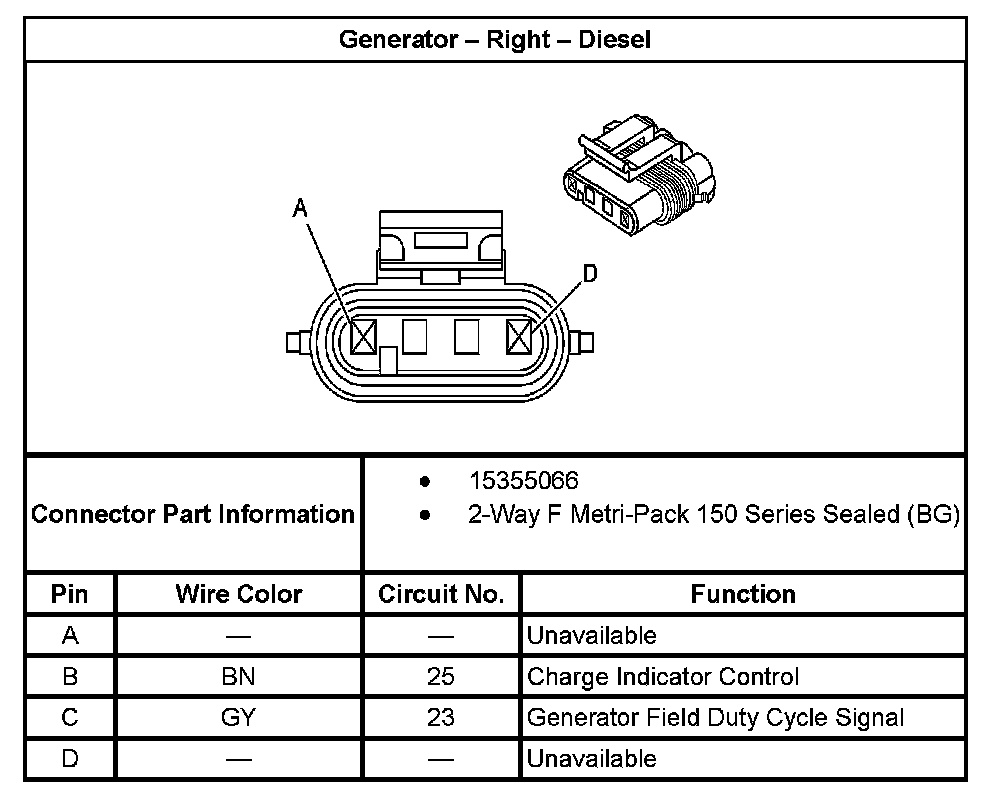

Generator - Right
Generator - Right
Generator - Right:
