Home
>>
Chevy Truck
>>
2006
>>
Silverado 2500 4WD V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Refrigerant Pressure Sensor / Switch
>>
Diagrams
>>
Connector Views
Connector Views

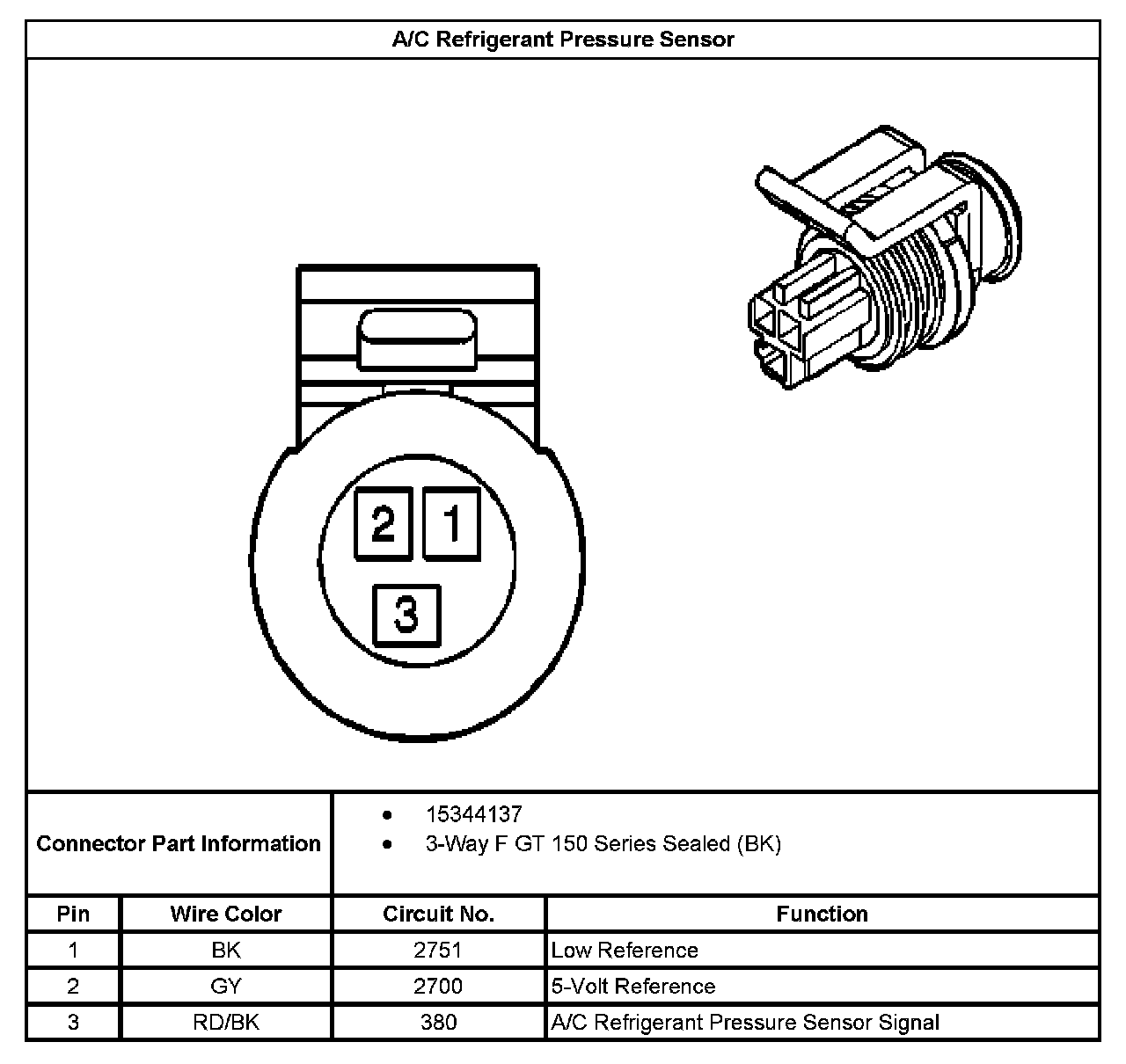

A/C Refrigerant Pressure Sensor:
A/C Refrigerant Pressure Sensor:
