Seats
>>
Power Seat Motor Position Sensor
>>
Seat Rear Vertical Position Sensor
Seat Rear Vertical Position Sensor

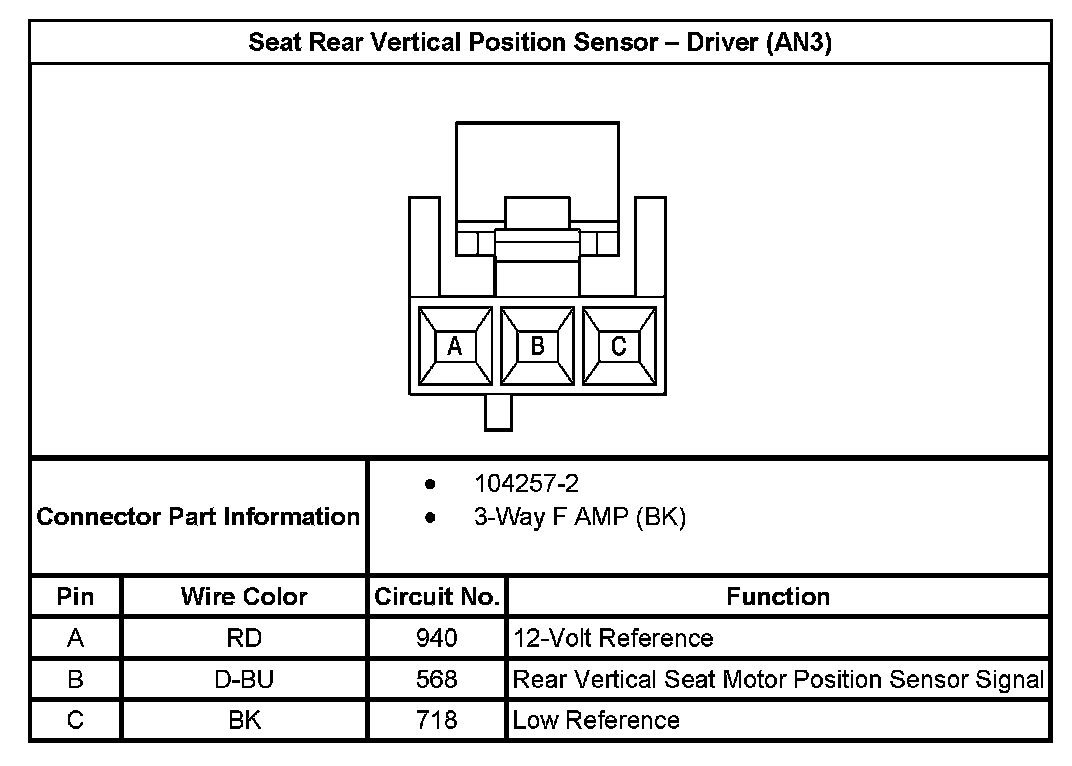

Seat Rear Vertical Position Sensor - Driver (With RPO Code AN3):
