Home >> Chevy Truck >> 2006 >> Silverado 2500 4WD V8-6.6L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block - I/P C3

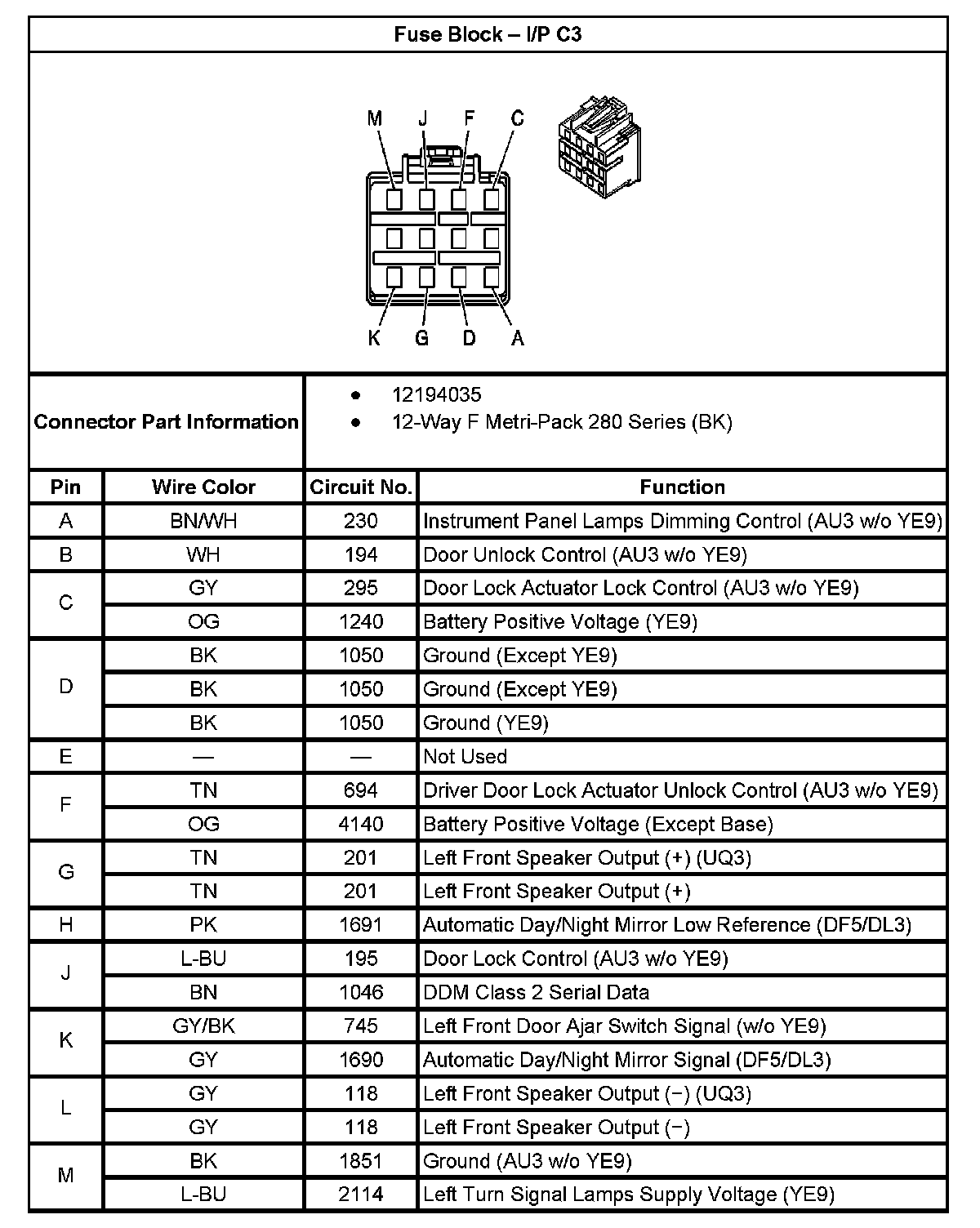

Fuse Block - I/P C3

Fuse Block - I/P C3:
