Chevy Truck
>>
2006
>>
Silverado 2500 4WD V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alternator
>>
Generator (20/30 Series)
Generator (20/30 Series)

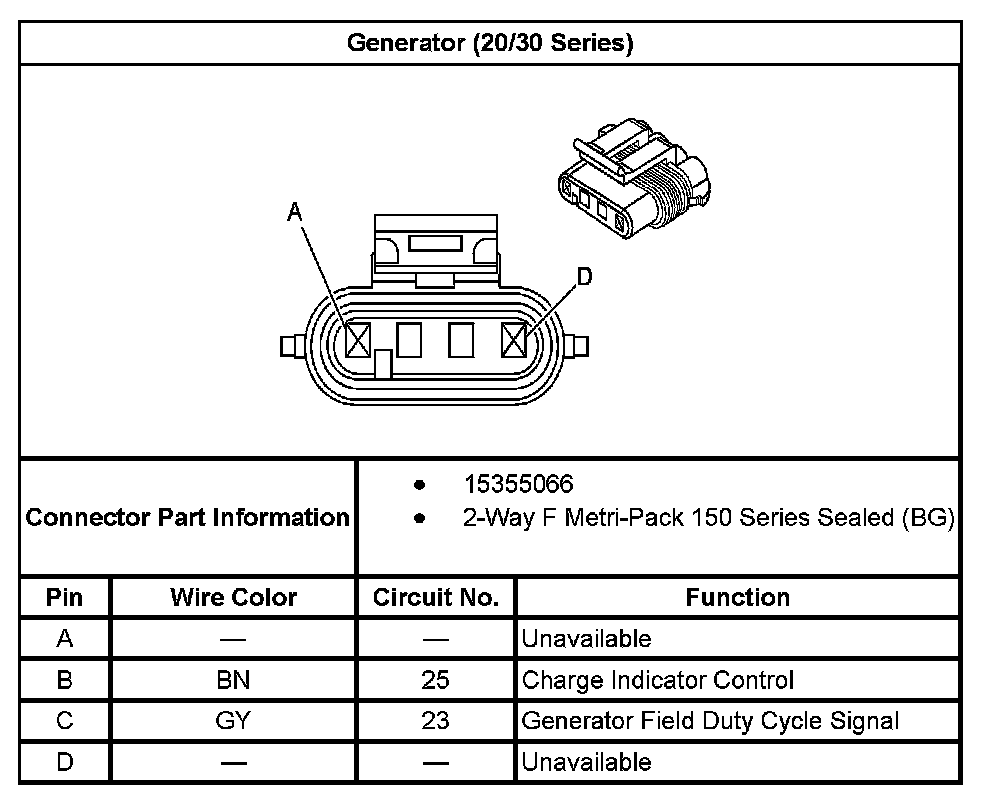

Generator (20/30 Series):
