Air Outlet Replacement - Rear Floor

Air Outlet Replacement - Rear Floor

Removal Procedure
1. Remove the floor console. Refer to Console Replacement.
2. Remove the seats. Refer to Seat Replacement - Center.
3. Remove the HVAC module assembly. Refer to HVAC Module Assembly Replacement.

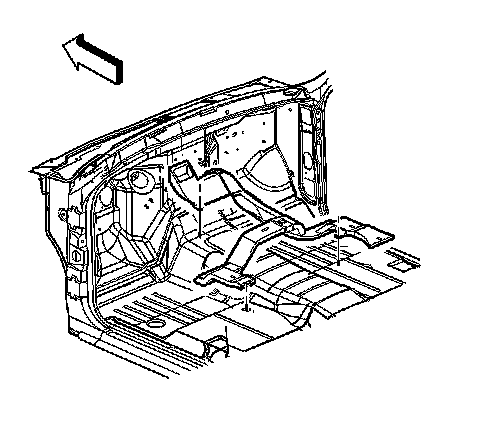

4. Roll the carpeting back to expose the rear floor air ducts.

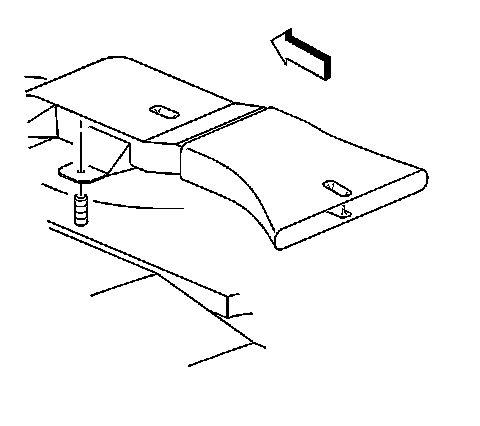

5. Remove the rear floor ducts from the floor studs.





6. Remove the rear floor duct.

Installation Procedure





1. Install the rear floor air duct.





2. Install the rear floor ducts from the floor studs.
3. Position the carpeting back into place.
4. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement.
5. Install the seats. Refer to Seat Replacement - Center.
6. Install the floor console. Refer to Console Replacement.
