Chevy Truck
>>
2006
>>
Silverado 2500 2WD V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Drive Axle - Locking/Limited Slip
>>

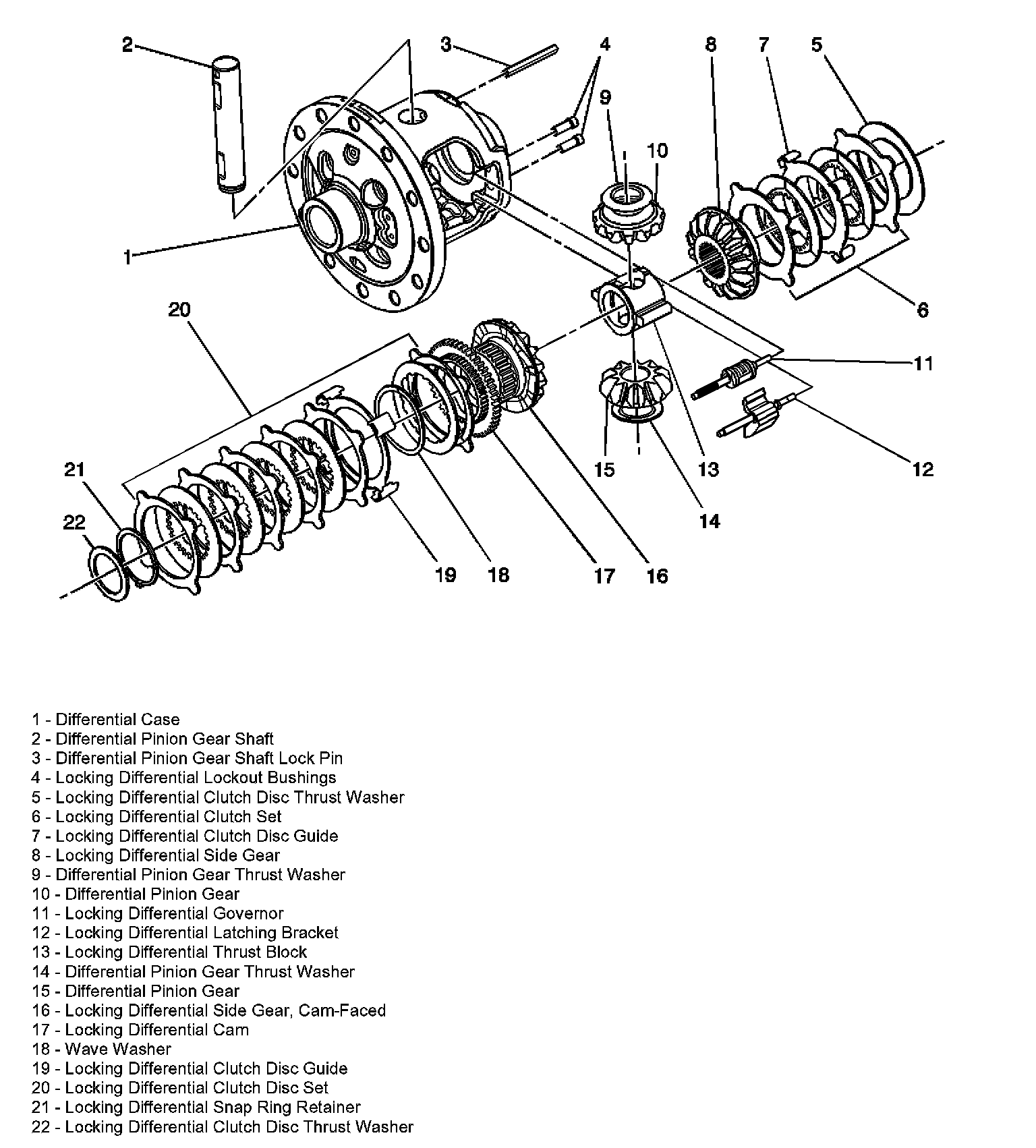

11.5 Locking Differential
11.5 Locking Differential
