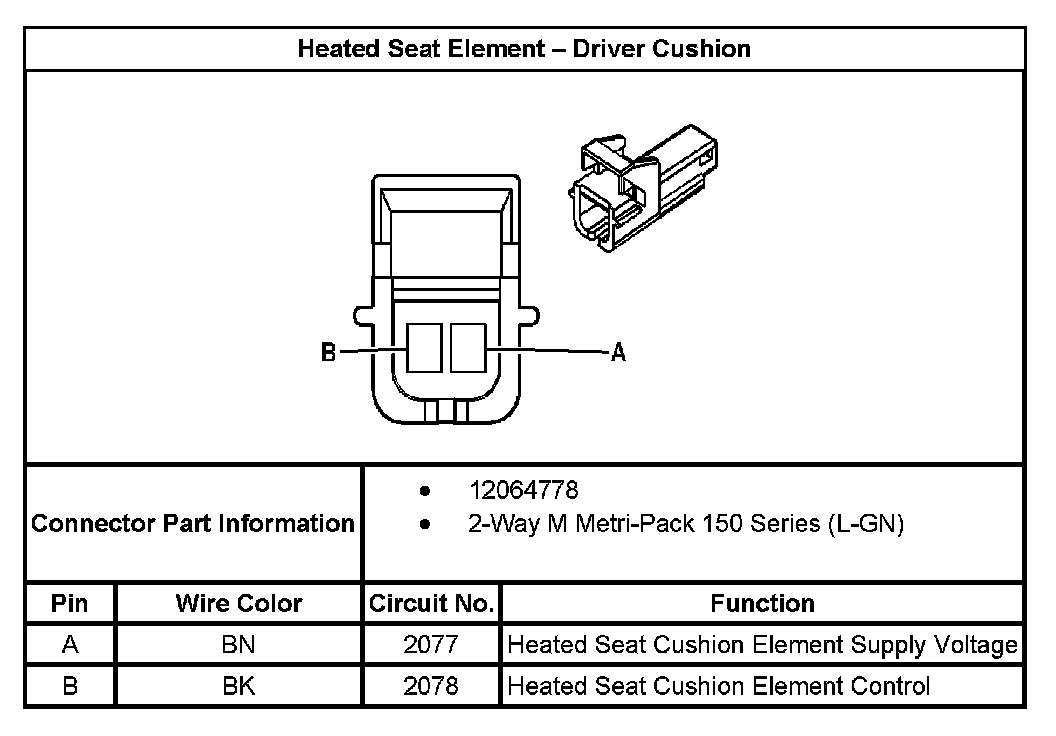

Heated Seat Element - Driver Cushion
Heated Seat Element - Driver Cushion
Heated Seat Element - Driver Cushion:
