Chevy Truck
>>
2006
>>
Silverado 2500 2WD V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C111
C111

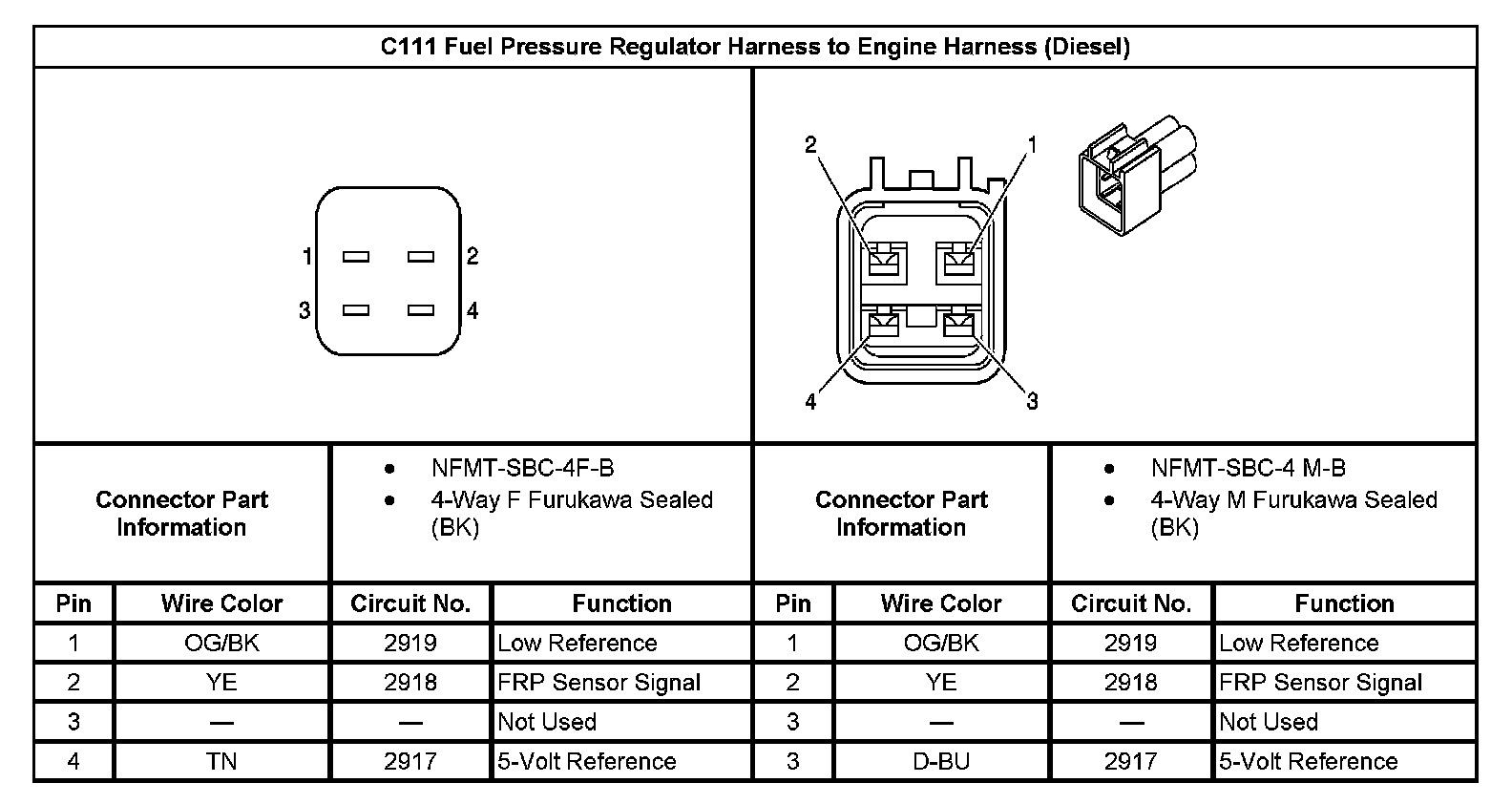

C111 Fuel Pressure Regulator Harness To Engine Harness:
