Front Disc Brake Splash Shield Replacement



Disc Brake Splash Shield Replacement - Front (1500 Series)

Caution: Refer to Brake Dust Caution in Service Precautions.

Removal Procedure

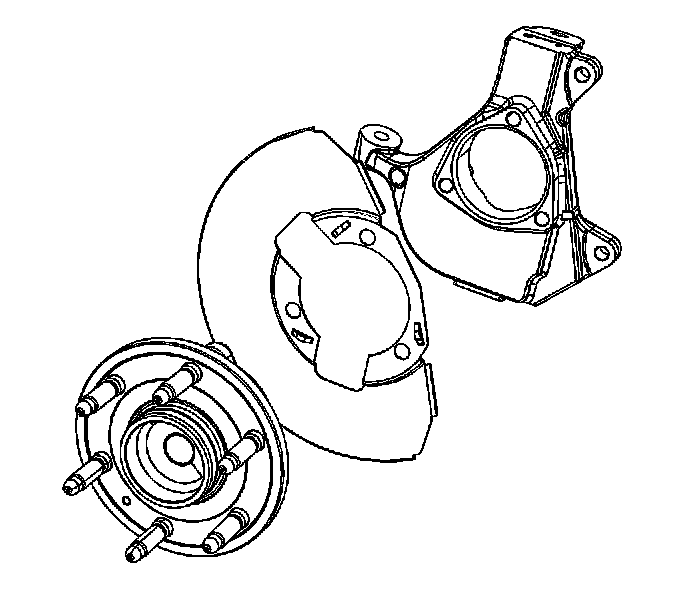

1. Remove the hub and bearing assembly.
2. Remove the splash shield .

Installation Procedure





1. Install the splash shield.
2. Install the hub and bearing assembly.
