Crankshaft Position Sensor
>>
Diagrams
>>
Connector Views
Connector Views

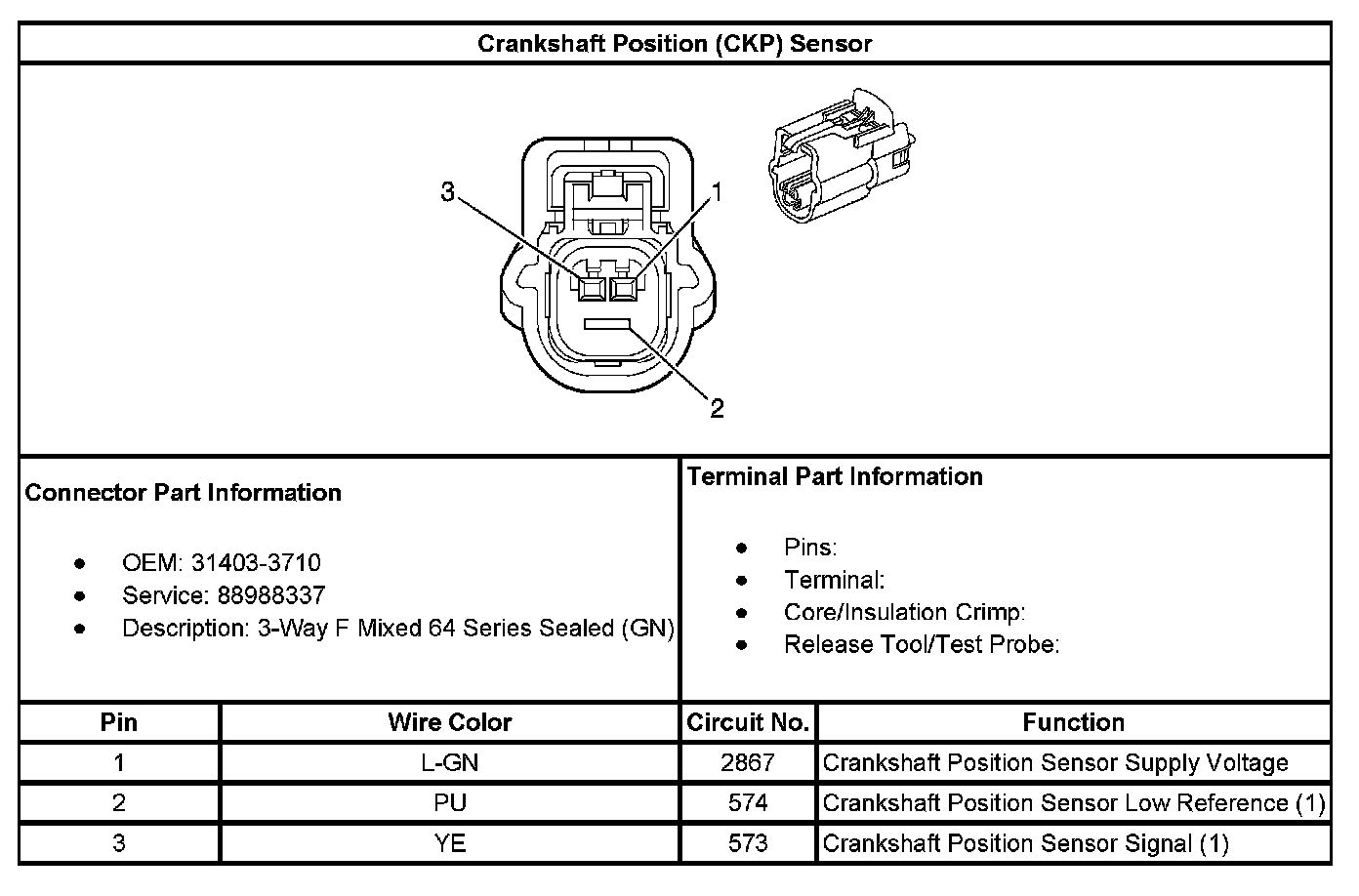

Crankshaft Position (CKP) Sensor:
