Power Mirror Motor
Power Mirror Motor

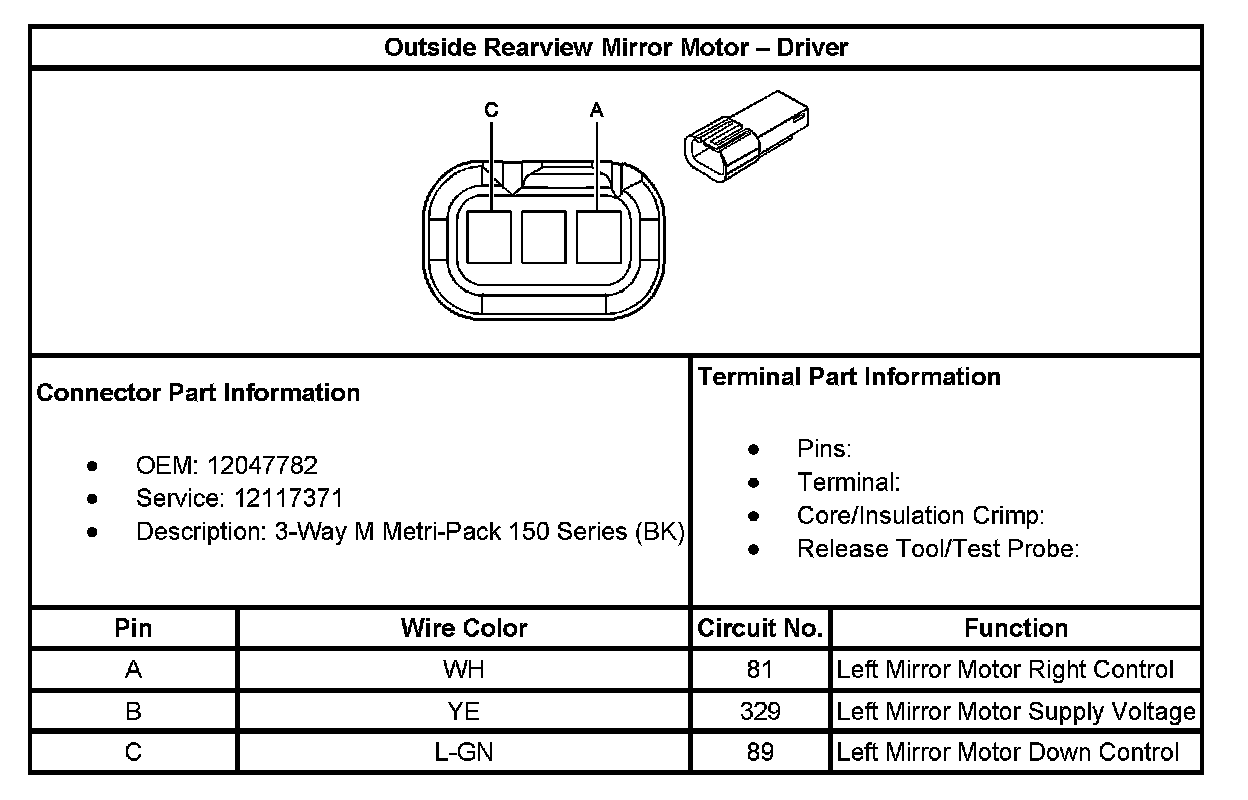

Outside Rearview Mirror Motor - Driver:

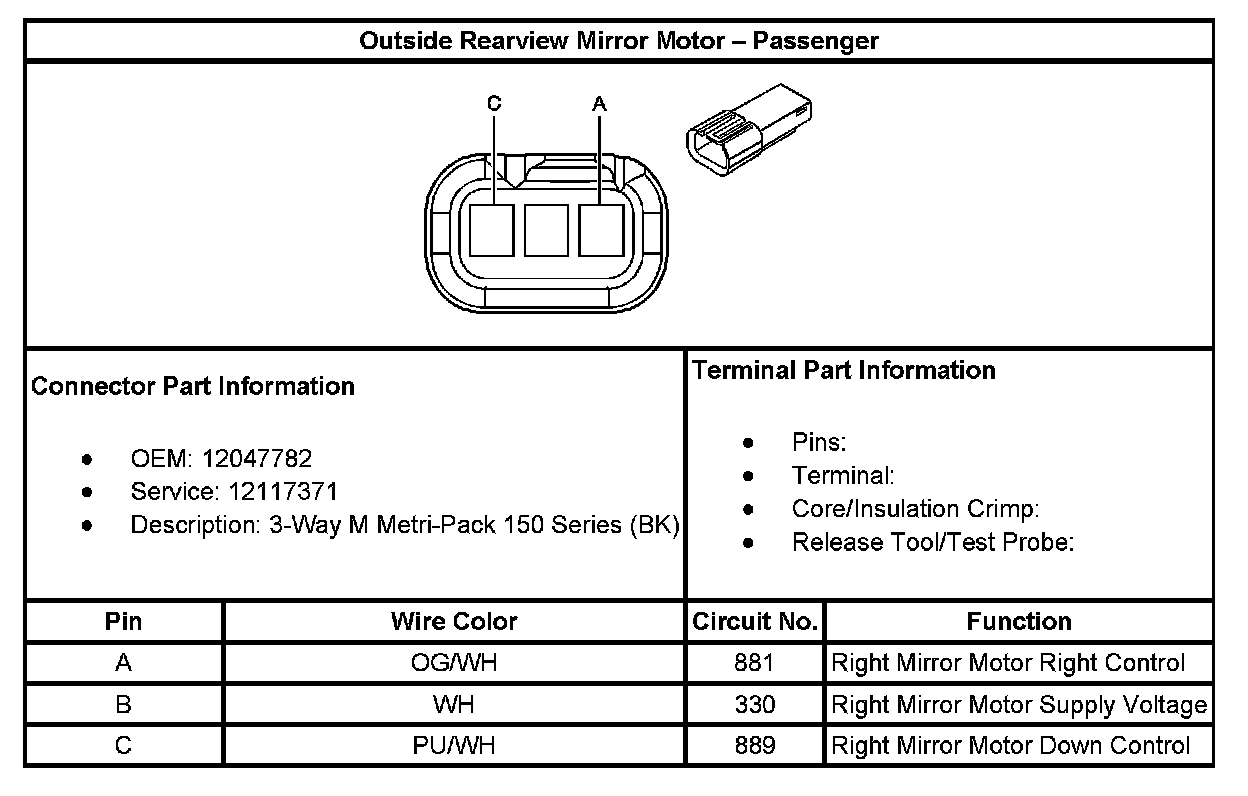

Outside Rearview Mirror Motor - Passenger:
