Impact Sensor
>>
Inflatable Restraint Passenger Seat Belt Tension Sensor
Inflatable Restraint Passenger Seat Belt Tension Sensor

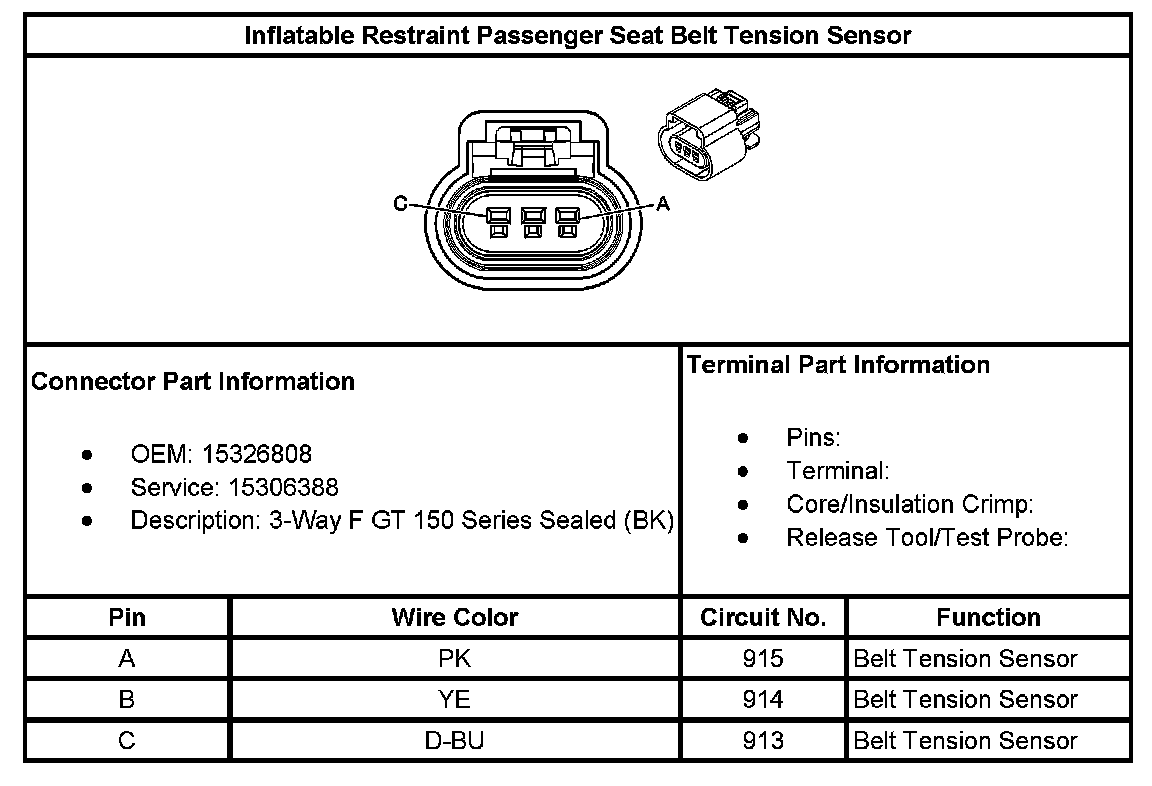

Inflatable Restraint Passenger Seat Belt Tension Sensor:
