Seat Belt Tensioner
Seat Belt Tensioner
Seat Belt Pretensioner - Left:

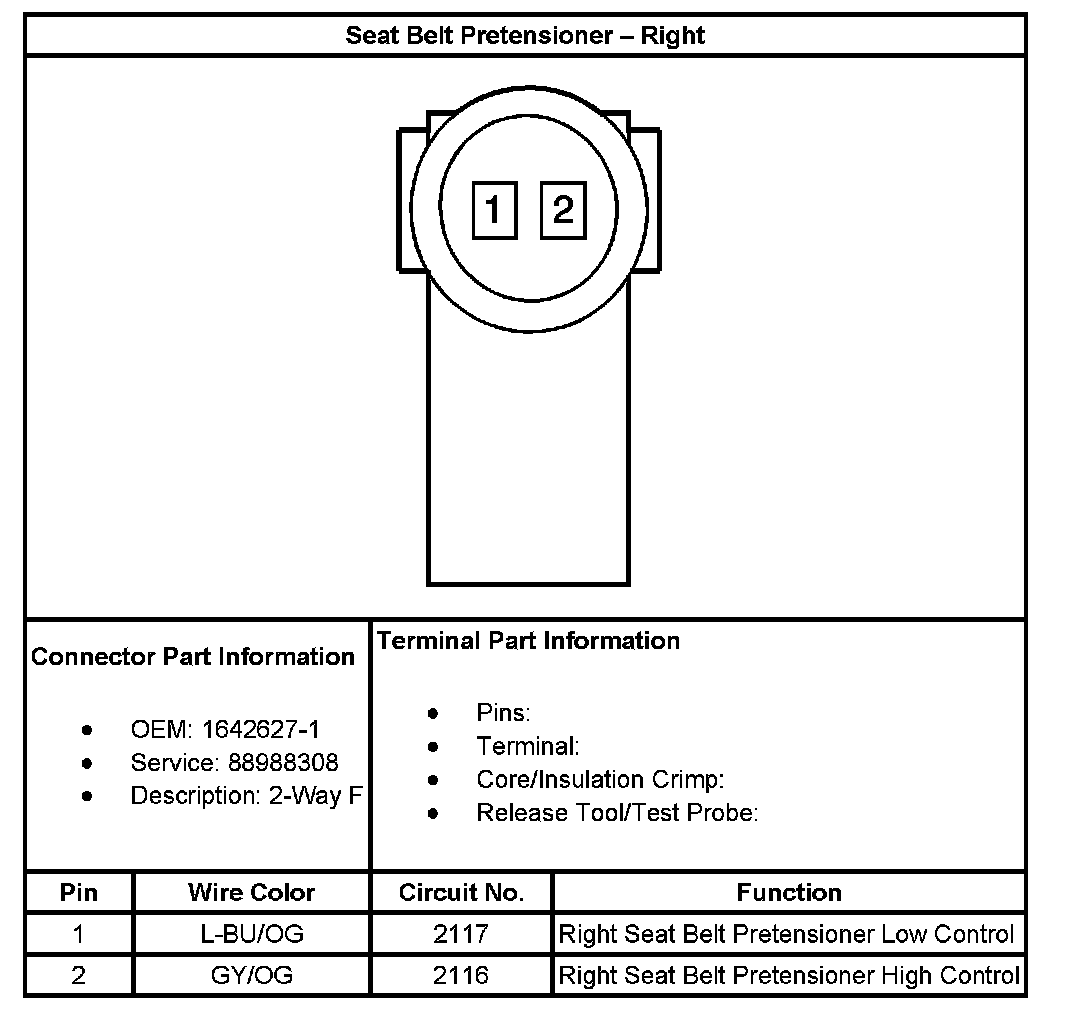

Seat Belt Pretensioner - Right:
