Home
>>
Chevy Truck
>>
2006
>>
Express 2500 V8-6.6L DSL Turbo VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lateral Accelerometer
Lateral Accelerometer

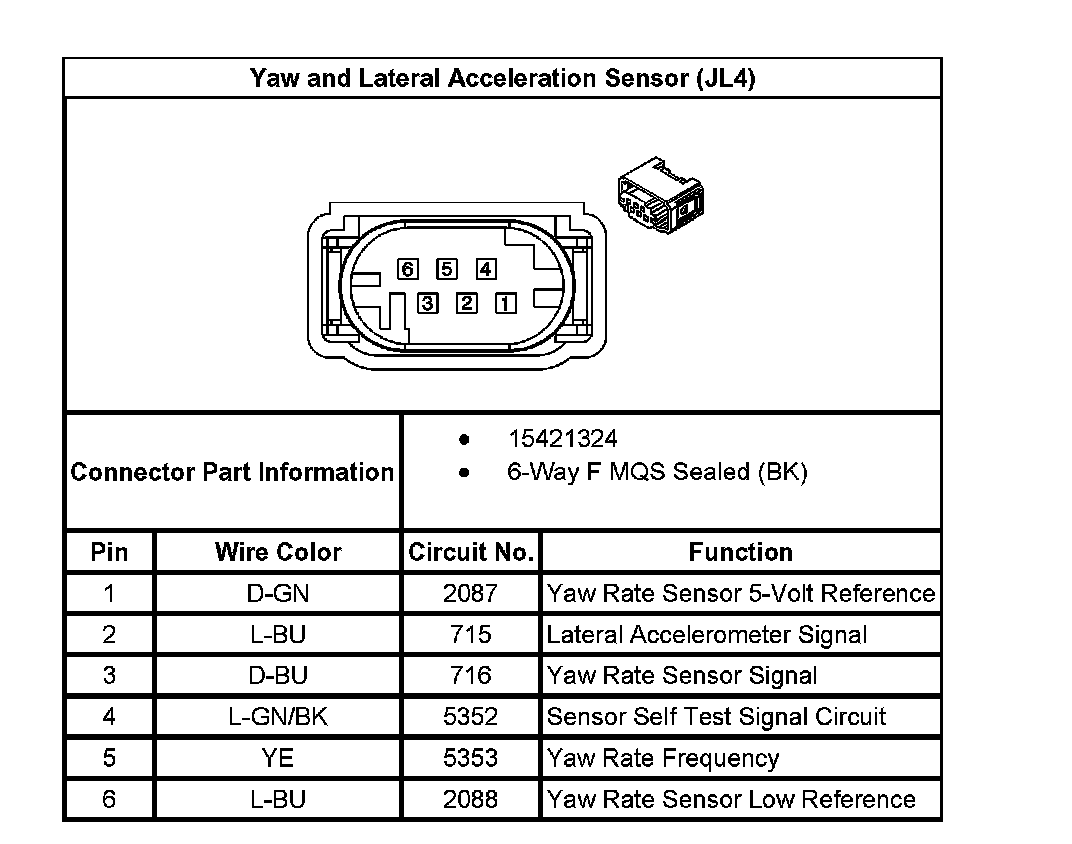

Yaw and Lateral Acceleration Sensor (JL4):
